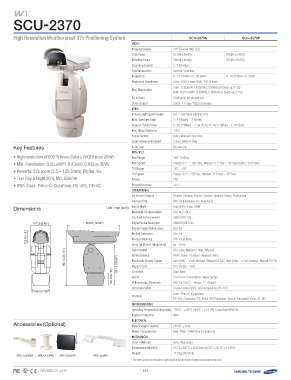

High Resolution Weatherproof 37x Positioning System SCU-2370N SCU-2370P
Video
Imaging Device 1/4" Ex-view HAD CCD
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0.02Lux@F1.6 (50IRE), 0.00004Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x)
Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele)
Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
Min. Object Distance 1.5m
Focus Control Auto / Manual / One shot
Key Features Zoom Movement Speed 2.8sec (Wide to tele)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Lens Type DC auto iris
Pan / Tilt
Pan Range 360° Endless
• Min. illumination 0.2Lux@F1.6 (Color), 0.02Lux (B/W) Pan Speed Preset : 0.1° ~ 120°/sec, Manual : 0.1°/sec ~ 36°/sec (Turbo : 120°/sec)
• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x Tilt Range -85° ~ 40°
• True Day & Night (ICR), MD, SSNRIII Tilt Speed Preset : 0.1° ~ 36°/sec, Manual : 0.1°/sec ~ 36°/sec
Preset 255
• IP66, Coax : Pelco-C (Coaxitron), RS-485, 24V AC Preset Accuracy ±0.1°
Operational
On Screen Display English, Chinese, French, German, Spanish, Italian, Portuguese
Camera Title Off / On (Displayed 12 characters)
Dimensions Unit : mm (inch) Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / HLC / BLC
Contrast Enhancement SSDR (Off / On)
212717.3.3 ((88..556"6) ") 5005.000.0(1(199..6699")") Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
12122.2.00 ((44..8"8)")
58 57.875.5( (2233..113"3)") Motion Detection Off / On
11313.01.(50.1(6"5).16")
43431.1.55 ((116.69.99")9") Privacy Masking Off / On (8 area)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Medium / High / Manual
White Balance ATW / Indoor / Outdoor / Manual / AWC
Electronic Shutter Speed Auto (1/60 ~ 1/120,000sec) / Manual / A.FLK Auto (1/50 ~ 1/120,000sec) / Manual / A.FLK
Digital Zoom Off / On (2x ~ 16x)
Schedule Day / Time
Alarm 3 In 2 Out 1 Aux (Option : Wiper pump)
IR Illuminator (Optional) Off / On / On (1 ~ 60sec, 1 ~ 60min)
Ø1Ø8158.50.0((77..2288")") Communication Coaxial control (SPC-300 compatible), RS-485
Protocol
Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, GE, AD
Environmental
Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Accessories (Optional) Electrical 24V AC ±10%
Input Voltage / Current
Power Consumption Max. 40W / 144W (Fan & heater on)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxHxD) 217.3 x 587.5 x 500.0mm (8.56" x 23.13" x 19.69")
SBU-500WM SBU-220PM SPI-10A/30A SBU-550IM Weight 17.5Kg (38.58 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 154
