P. 156
-6081R

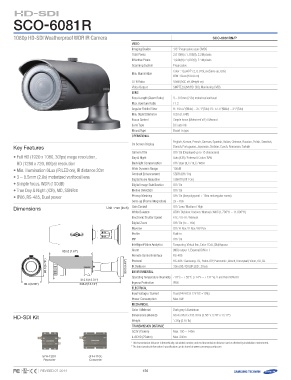

1080p HD-SDI Weatherproof WDR IR Camera SCO-6081RN/P
Video 1/3" Progressive scan CMOS
Imaging Device
Total Pixels 2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels 1,944(H) x 1,092(V), 2.1M pixels
Scanning System Progressive
Min. Illumination Color : 1Lux@F1.2, 0.015Lux (Sens-up, 60x)
B/W : 0Lux (IR LED on)
S / N Ratio 50dB (AGC off, Weight on)
Video Output SMPTE292M (HD-SDI), Monitoring CVBS
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual
Lens Type DC auto iris
Mount Type Board-in type
Operational
Key Features On Screen Display English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish,
Danish, Portuguese, Japanese, Serbian, Czech, Romanian, Turkish
• Full HD (1920 x 1080, 30fps) mega resolution, Camera Title
HD (1280 x 720, 60fps) resolution Day & Night Off / On (Displayed up to 15 characters)
• Min. Illumination 0Lux (IR LED on), IR distance 30m Backlight Compensation Auto (ICR) / External / Color / B/W
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Wide Dynamic Range Off / User BLC / HLC / WDR
• Simple focus, WDR (100dB) Contrast Enhancement 100dB
• True Day & Night (ICR), MD, SSNRIII Digital Noise Reduction SSDR (Off / On)
• IP66, RS-485, Dual power Digital Image Stabilization SSNRIII (Off / On)
Motion Detection Off / On
Privacy Masking Off / On
Sens-up (Frame Integration) Off / On (4ea polygonal + 16ea rectangular zones)
2x ~ 60x
Dimensions Unit : mm (inch) Gain Control Off / Low / Medium / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed ESC / A.FLK / Manual
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Built-in
PIP Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear
20200.00.0((77..8877"") ) Alarm (MD) output 1, External D/N in 1
Remote Control Interface RS-485
9966..08 ((33..871"8)") Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
9 90.0.00 ((44..449"9)")
IR Distance 30m (98.43ft) (IR LED : 20ea)
Environmental
313212.6.6 ((1122..3311")") Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
333333..22(1(13.312.1")2")
9090.4.4 ((33..5566")") Ingress Protection IP66
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 6W
Mechanical
Color / Material Dark gray / Aluminium
HD-SDI Kit Dimensions (WxHxD) 90.4 x 96.0 x 333.2mm (3.56" x 3.78" x 13.12")
Weight 1.3Kg (2.87 lb)
Transmission Distance
5C2V (75ohm) Max. 100 ~ 140m
L-6CHD (75ohm) Max. 200m
* This transmission distance is theoretically calculated number, and real transmission distance can be affected by installation environment.
* The latest product information / specification can be found at www.samsungsecurity.com
SPH-120R SPH-110C
Repeater Converter
REVISED 07-2014 156
