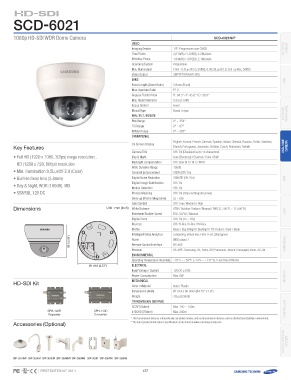

1080p HD-SDI WDR Dome Camera SCD-6021N/P
Video NETWORK
Camera
Imaging Device 1/3" Progressive scan CMOS
Total Pixels 2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels 1,944(H) x 1,092(V), 2.1M pixels
Scanning System Progressive
Min. Illumination Color : 0.5Lux (F2.0, 50IRE), 0.0025Lux (F2.0, Sen-up 60x, 50IRE)
Video Output SMPTE292M (HD-SDI)
Lens NVR
Focal Length (Zoom Ratio) 3.8mm (Fixed)
Max. Aperture Ratio F2.0
Angular Field of View H : 84.5° / V : 45.8° / D : 98.8°
Min. Object Distance 0.5m (1.64ft)
Focus Control Fixed NETWORK
PERIPHERAL
Mount Type Board-in type
Pan / Tilt / Rotate
Pan Range 0° ~ 354°
Tilt Range 0° ~ 67°
Rotate Range 0° ~ 355°
Operational
Key Features On Screen Display English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish, Analogue
• Full HD (1920 x 1080, 30fps) mega resolution, Danish, Portuguese, Japanese, Serbian, Czech, Romanian, Turkish Camera
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (Electrical) / External / Color / B/W
HD (1280 x 720, 60fps) resolution Backlight Compensation Off / User BLC / HLC / WDR
• Min. Illumination 0.5Lux@F2.0 (Color) Wide Dynamic Range 100dB
Contrast Enhancement SSDR (Off / On)
• Built-in fixed lens (3.8mm) Digital Noise Reduction SSNRIII (Off / On) DVR
• Day & Night, WDR (100dB), MD Digital Image Stabilization Off / On
• SSNRIII, 12V DC Motion Detection Off / On
Privacy Masking Off / On (16ea rectangular zones)
Sens-up (Frame Integration) 2x ~ 60x
Dimensions Gain Control Off / Low / Medium / High LENS
Unit : mm (inch) White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed ESC / A.FLK / Manual
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic / Day & Night / Backlight / ITS / Indoor / User / Bank
99.099(3.9") Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear PERIPHERAL
Alarm (MD) output 1
Remote Control Interface RS-485
Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ø119Ø.1819(.48 .72") Electrical
Input Voltage / Current 12V DC ±10% MONITOR
Power Consumption Max. 6W
HD-SDI Kit Mechanical Ivory / Plastic
Color / Material
Dimensions (WxH) Ø119.8 x 99.0mm (Ø4.72" x 3.9")
Weight 435g (0.96 lb)
Transmission Distance CONTROLLER
SPH-120R SPH-110C 5C2V (75ohm) Max. 100 ~ 140m
Repeater Converter L-6CHD (75ohm) Max. 200m
Accessories (Optional) * This transmission distance is theoretically calculated number, and real transmission distance can be affected by installation environment.
* The latest product information / specification can be found at www.samsungsecurity.com
