P. 152
-2120

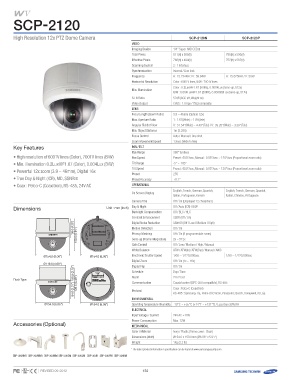

High Resolution 12x PTZ Dome Camera SCP-2120N SCP-2120P
Video
Imaging Device 1/4" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.2Lux@F1.67 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0.004Lux@F1.67 (50IRE), 0.000008Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.9 ~ 46mm (Optical 12x)
Max. Aperture Ratio 1 : 1.67(Wide) ~ 1.88(Tele)
Angular Field of View H : 51.54°(Wide) ~ 4.49°(Tele) / V : 39.28°(Wide) ~ 3.39°(Tele)
Min. Object Distance 1m (3.28ft)
Focus Control Auto / Manual / One shot
Zoom Movement Speed 1.9sec (Wide to tele)
Key Features Pan / Tilt
• High resolution of 600TV lines (Color), 700TV lines (B/W) Pan Range 360° Endless
• Min. illumination 0.2Lux@F1.67 (Color), 0.004Lux (B/W)
• Powerful 12x zoom (3.9 ~ 46mm), Digital 16x Pan Speed Preset : 650°/sec, Manual : 0.05°/sec ~ 120°/sec (Proportional zoom ratio)
• True Day & Night (ICR), MD, SSNRIII
• Coax : Pelco-C (Coaxitron), RS-485, 24V AC Tilt Range -5° ~ 185°
Tilt Speed Preset : 650°/sec, Manual : 0.05°/sec ~ 120°/sec (Proportional zoom ratio)
Preset 255
Preset Accuracy ±0.1°
Operational
On Screen Display English, French, German, Spanish, English, French, German, Spanish,
Italian, Portuguese, Korean Italian, Chinese, Portuguese
Camera Title Off / On (Displayed 12 characters)
Dimensions Unit : mm (inch) Day & Night Off / Auto (ICR) / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
110088..00((44..2255")") Digital Noise Reduction SSNRIII (Off / Low / Medium / High)
15150.0.00((55..9911"")) Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Medium / High / Manual
White Balance ATW / ATW(In) / ATW(Out) / Manual / AWC
Ø1Ø51454.0.0(6(6..0066"")) ØØ115544.00 ((66..0066")") Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Ø1Ø1191.90(4(4.6.69"9)") ØØ115544.0.0(6(.60.60"6) ")
Digital Zoom Off / On (1x ~ 16x)
884.4.00((33..3311"")) 5555..5 (52(.128.")18") Digital Flip Off / On
113399..55 ((55..4499")")
Schedule Day / Time
Flush Type Alarm 2 In 2 Out
Communication Coaxial control (SPC-300 compatible), RS-485
Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Vicon, Panasonic, Bosch, Honeywell, AD, GE
Environmental
ØØ115544..00 ((66..0066"") ) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Accessories (Optional) Electrical
Input Voltage / Current 24V AC ±10%
Power Consumption Max. 12W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxH) Ø154.0 x 150.0mm (Ø6.06" x 5.91")
Weight 1Kg (2.2 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-300HM1 SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300PM SBP-300KM
REVISED 09-2012 152
