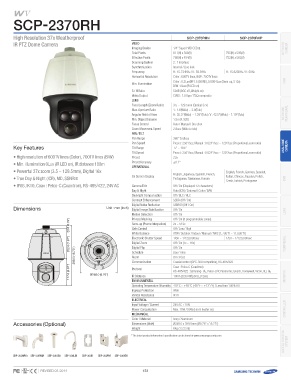

Page 153 - Catalog Samsung 2014
P. 153
-2370RH
High Resolution 37x Weatherproof SCP-2370RHN SCP-2370RHP
IR PTZ Dome Camera
Video NETWORK
Camera
Imaging Device 1/4" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines NVR
Min. Illumination Color : 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x) NETWORK
PERIPHERAL
Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele)
Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
Min. Object Distance 1.5m (4.92ft)
Focus Control Auto / Manual / One shot
Zoom Movement Speed 2.8sec (Wide to tele)
Pan / Tilt
Pan Range 360° Endless Analogue
Camera
Key Features Pan Speed Preset : 250°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Tilt Range -5° ~ 185°
• Min. illumination 0Lux (IR LED on), IR distance 100m
• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x Tilt Speed Preset : 250°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• True Day & Night (ICR), MD, SSNRIII
• IP66, IK10, Coax : Pelco-C (Coaxitron), RS-485/422, 24V AC Preset 255
Preset Accuracy ±0.1°
Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, DVR
Portuguese, Taiwanese, Korean Italian, Chinese, Russian, Polish,
Czech,Turkish, Portuguese
Camera Title Off / On (Displayed 12 characters)
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On) LENS
Digital Image Stabilization Off / On
Motion Detection Off / On
202.250(27..597") 20.200(0.79") Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec PERIPHERAL
Digital Zoom Off / On (1x ~ 16x)
399.5 (31995..573") Digital Flip Off / On
Schedule Day / Time
Alarm 8 In 3 Out
Communication Coaxial control (SPC-300 compatible), RS-485/422
177.107(76.97") Protocol Coax : Pelco-C (Coaxitron) MONITOR
RS-485/422 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Ø248Ø.02(498.76")
IR Distance 100m (328.08ft) (IR LED 2ea)
Accessories (Optional)
Environmental
Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 100% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical CONTROLLER
Input Voltage / Current 24V AC ±10%
Power Consumption Max. 15W / 90W (Fan & heater on)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø248.0 x 399.5mm (Ø9.76" x 15.73")
Weight 6Kg (13.23 lb) Access Control
System
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300PM SBP-300KM 153
REVISED 03-2014
