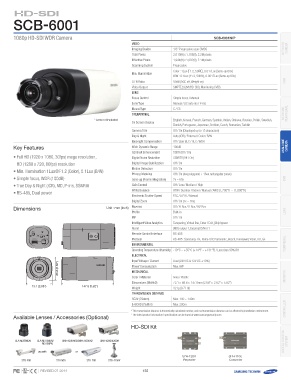

Page 155 - Catalog Samsung 2014
P. 155
-6001
1080p HD-SDI WDR Camera SCB-6001N/P
Video NETWORK
Camera
Imaging Device 1/3" Progressive scan CMOS
Total Pixels 2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels 1,944(H) x 1,092(V), 2.1M pixels
Scanning System Progressive
Min. Illumination Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x)
B/W : 0.1Lux (F1.2, 50IRE), 0.0017Lux (Sens-up 60x)
S / N Ratio 50dB (AGC off, Weight on) NVR
Video Output SMPTE292M (HD-SDI), Monitoring CVBS
Lens
Focus Control Simple focus / Manual
Lens Type Manual / DC auto iris / P-iris
Mount Type C / CS NETWORK
PERIPHERAL
Operational
* Lens not included On Screen Display English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish,
Danish, Portuguese, Japanese, Serbian, Czech, Romanian, Turkish
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR Analogue
Camera
Key Features Wide Dynamic Range 100dB
• Full HD (1920 x 1080, 30fps) mega resolution, Contrast Enhancement SSDR (Off / On)
HD (1280 x 720, 60fps) resolution
• Min. Illumination 1Lux@F1.2 (Color), 0.1Lux (B/W) Digital Noise Reduction SSNRIII (Off / On)
• Simple focus, WDR (100dB) Digital Image Stabilization Off / On
• True Day & Night (ICR), MD, P-iris, SSNRIII
• RS-485, Dual power Motion Detection Off / On
Privacy Masking Off / On (4ea polygonal + 16ea rectangular zones)
Sens-up (Frame Integration) 2x ~ 60x DVR
Gain Control Off / Low / Medium / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed ESC / A.FLK / Manual
Digital Zoom Off / On (1x ~ 16x)
Dimensions Unit : mm (inch) Reverse Off / H-Rev / V-Rev / HV-Rev LENS
Profile Built-in
PIP Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear
Alarm (MD) output 1, External D/N in 1
HD-SDI Remote Control Interface RS-485
VIDEO POWER PERIPHERAL
1 : GND Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
2 : EXT_D/N
3 : MD_OUT Environmental
4 : RS_485+
5 : RS_485-
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
6666..66 ((22..6622")") Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 6W
Mechanical MONITOR
Color / Material Ivory / Plastic
Dimensions (WxHxD) 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
7733..11 ((22..8888"") ) 114477.8.8(5(5.8.82"2)") Weight 321g (0.71 Ib)
Transmission Distance
5C2V (75ohm) Max. 100 ~ 140m CONTROLLER
L-6CHD (75ohm) Max. 200m
Available Lenses / Accessories (Optional) * This transmission distance is theoretically calculated number, and real transmission distance can be affected by installation environment.
* The latest product information / specification can be found at www.samsungsecurity.com
HD-SDI Kit
SLA-M2890DN SLA-M3180DN/ SHB-4300H/4300H1/4300H2 SHB-4200/4200H Access Control
M3180PN System
or
use with
STB-400 STH-500 STH-200 STB-4150V SPH-120R SPH-110C
Repeater Converter
REVISED 07-2014 155
