P. 160
-2000

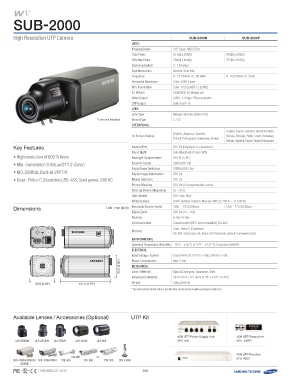

High Resolution UTP Camera SUB-2000N SUB-2000P
Video 1/3" Super HAD CCD II 795(H) x 596(V)
Imaging Device 811(H) x 508(V)
Total Pixels
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines
Min. Illumination Color : 0.05Lux@F1.2 (50IRE)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
UTP Output Built-in UTP TX
Lens Manual / Auto iris (Video / DC)
Lens Type
* Lens not included Mount Type C / CS
Operational
On Screen Display English, Japanese, Spanish, English, French, German, Spanish, Italian,
French, Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish,Portuguese
Key Features Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
• High resolution of 600TV lines Backlight Compensation Off / BLC / HLC
• Min. illumination 0.05Lux@F1.2 (Color) Dynamic Range SSDR (Off / On)
• MD, SSNRIII, Built-in UTP T/X Digital Noise Reduction SSNRIII (Off / On)
• Coax : Pelco-C (Coaxitron), RS-485, Dual power, 28V AC Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Dimensions Unit : mm (inch) Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
Communication Coaxial control (SPC-300 compatible), RS-485
Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
552.2.00((22..05"")) Input Voltage / Current Dual (24V AC & 12V DC ±10%), 28V AC ±10%
Power Consumption Max. 3.5W
Mechanical
Color / Material Black & Dark gray / Aluminum, Steel
Dimensions (WxHxD) 58.0 x 52.0 x 121.0mm (2.28" x 2.05" x 4.76")
585.80.0(2(2.2.288"")) 112211.0.0(4(.47.67"6) ") Weight 290g (0.64 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
Available Lenses / Accessories (Optional) UTP Kit
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880 4CH UTP Power Supply Hub 1CH UTP Transceiver
SPU-400 SPU-100TR
use with or 4CH UTP Receiver
SPU-400R
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 160
