P. 165
-9080/9060

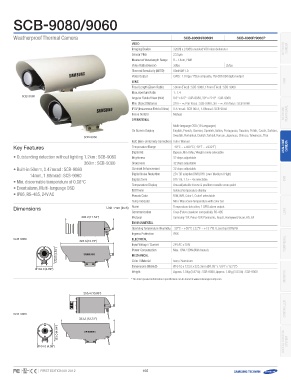

Weatherproof Thermal Camera SCB-9080N/9060N SCB-9080P/9060P
Video 320(H) x 240(H) uncooled VOX microbolometer NETWORK
Imaging Device Camera
Sensor Pitch 23.5μm 25fps
Measured Wavelength Range 8 ~ 14um, LWIR
Video Ratio (Sensor) 30fps
Thermal Sensitivity (NETD) 80mK@F1.0
Video Output CVBS : 1.0 Vpp / 75Ω composite, ITU-656 8bit digital output NVR
Lens
SCB-9080 Focal Length (Zoom Ratio) 50mm (Fixed) : SCB-9080, 14mm (Fixed) : SCB-9060
Max. Aperture Ratio 1 : 1.4
Angular Field of View (HxV) 8.6° x 6.5° : SCB-9080, 30° x 22.8° : SCB-9060
Min. Object Distance 27m ~ ∞, Pan focus : SCB-9080, 3m ~ ∞, Pan focus : SCB-9060
IFOV (Instaneous Field of View) 0.47mrad : SCB-9051, 1.68mrad : SCB-9050 NETWORK
PERIPHERAL
Focus Control Manual
Operational
On Screen Display Multi-language OSD (19 Languages)
English, French, German, Spanish, Italian, Portuguese, Russian, Polish, Czech, Serbian,
SCB-9060 Swedish, Romanian, Danish, Turkish, Korean, Japanese, Chinese, Taiwanese, Thai
Key Features NUC (Non-Uniformity Correction) Auto / Manual Analogue
Camera
• Outstanding detection without lighting 1.2km : SCB-9080 Temperature Range -40°C ~ +500°C (-40°F ~ +932°F)
360m : SCB-9060
Digital AE Bypass, Min / Max, Weight mode selectable
• Built-in 50mm, 0.47mrad : SCB-9080 Brightness 32 steps adjustable
14mm, 1.68mrad : SCB-9060
Sharpness 32 steps adjustable
• Min. discernable temperature of 0.08°C Contrast Enhancement 32 steps adjustable
• Event alarm, Multi-language OSD
• IP66, RS-485, 24V AC Digital Noise Reduction 2D / 3D adaptive DNR (Off / Low / Medium / High)
Digital Zoom Off / On, 1.1x ~ 4x selectable DVR
Temperature Display Area adjustable 8 zone & position movable cross point
ISOTherm Isolated temperature display
Pseudo Color B/W, W/B, Color1, Color2 selectable
Temp Indicator Min / Max scene temperature with color bar
Dimensions Unit : mm (inch) Alarm Temperature detection, 1 GPIO alarm output LENS
Communication Coax (Pelco coaxitron compatible), RS-485
293.229(131.2.54") Protocol Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Environmental
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
SCB-9080 323.33(2132.3.73") Electrical PERIPHERAL
Input Voltage / Current
24V AC ±10%
123.01 (234.84") Power Consumption Max. 10W / 30W (With heater)
Mechanical Ivory / Aluminum
Color / Material
Ø104ø.100(44.09") Dimensions (WxHxD) Ø104.0 x 123.0 x 323.3mm (Ø4.09" x 4.84" x 12.73") MONITOR
Weight Approx. 1.8Kg (3.97 lb) : SCB-9080, Approx. 1.6Kg (3.53 lb) : SCB-9060
* The latest product information / specification can be found at www.samsungsecurity.com
255.425(150.4.06")
SCB-9060 CONTROLLER
323.3 3(1223..733")
123.10 (234.84") Access Control
System
Ø104ø.100(44.09")
FIRST EDITION 09-2012 165
