P. 162
-2081

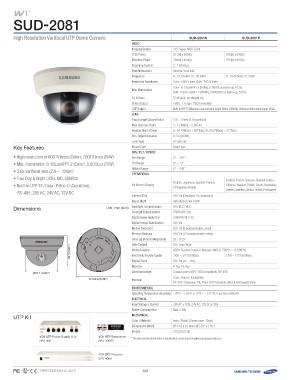

High Resolution Varifocal UTP Dome Camera SUD-2081N SUD-2081P
Video
Imaging Device 1/3" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
B/W : 0.001Lux@F1.2 (50IRE), 0.000002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
UTP Output Built-in UTP TX [Maximum transmission length 900m (3000ft)] : Balanced differential signal 100Ω
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele)
Min. Object Distance 0.2m (0.66ft)
Key Features Lens Type DC auto iris
• High resolution of 600TV lines (Color), 700TV lines (B/W) Mount Type Board type
Pan / Tilt / Rotate
Pan Range 0° ~ 352°
• Min. illumination 0.15Lux@F1.2 (Color), 0.001Lux (B/W) Tilt Range 0° ~ 73° English, French, German, Spanish, Italian,
• 3.6x varifocal lens (2.8 ~ 10mm) Rotate Range 0° ~ 348° Chinese, Russian, Polish, Czech, Romanian,
• True Day & Night (ICR), MD, SSNRIII Operational Serbian, Swedish, Danish, Turkish, Portuguese
• Built-in UTP TX, Coax : Pelco-C (Coaxitron), English, Japanese, Spanish, French,
On Screen Display Portuguese, Korean
RS-485, 28V AC, 24V AC, 12V DC Off / On (Displayed 15 characters)
Camera Title
Day & Night Auto (ICR) / Color / B/W
Dimensions Unit : mm (inch) Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
9299.22..000(((333...66622""2))") Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
ØØ9Ø9779..171.1((33(.38.8.28"22) "") ) Communication Coaxial control (SPC-300 compatible), RS-485
Protocol
Ø1Ø3Ø134143..040.0((55(.52..282"88)"") ) Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current 28V AC ±10%, 24V AC, 12V DC±10%
Power Consumption Max. 3.5W
UTP Kit Mechanical Ivory / Plastic (Dome cover : Clear)
Color / Material
Dimensions (WxH) Ø134.0 x 92.0mm (Ø5.28" x 3.62")
Weight 375g (0.83 lb)
4CH UTP Power Supply Hub 1CH UTP Transceiver * The latest product information / specification can be found at www.samsungsecurity.com
SPU-400 SPU-100TR
4CH UTP Receiver
SPU-400R
FIRST EDITION 12-2013 162
