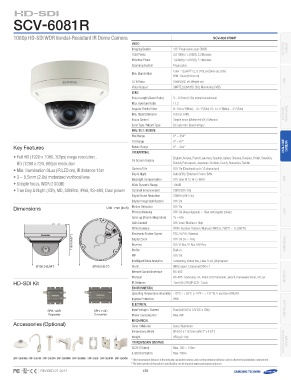

Page 159 - Catalog Samsung 2014
P. 159
-6081R
1080p HD-SDI WDR Vandal-Resistant IR Dome Camera SCV-6081RN/P
Video NETWORK
Camera
Imaging Device 1/3" Progressive scan CMOS
Total Pixels 2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels 1,944(H) x 1,092(V), 2.1M pixels
Scanning System Progressive
Min. Illumination Color : 1Lux@F1.2, 0.015Lux (Sens-up, 60x)
B/W : 0Lux (IR LED on)
S / N Ratio 50dB (AGC off, Weight on) NVR
Video Output SMPTE292M (HD-SDI), Monitoring CVBS
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21°(Tele) NETWORK
PERIPHERAL
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual
Lens Type / Mount Type DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan Range 0° ~ 354°
Key Features Tilt Range 0° ~ 67° Analogue
Rotate Range 0° ~ 355° Camera
• Full HD (1920 x 1080, 30fps) mega resolution, Operational
HD (1280 x 720, 60fps) resolution English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish, DVR
• Min. Illumination 0Lux (IR LED on), IR distance 15m On Screen Display Danish, Portuguese, Japanese, Serbian, Czech, Romanian, Turkish
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Off / On (Displayed up to 15 characters)
• Simple focus, WDR (100dB) Camera Title Auto (ICR) / External / Color / B/W
• True Day & Night (ICR), MD, SSNRIII, IP66, RS-485, Dual power Day & Night Off / User BLC / HLC / WDR
Backlight Compensation 100dB
Wide Dynamic Range SSDR (Off / On)
Contrast Enhancement SSNRIII (Off / On)
Digital Noise Reduction Off / On
Digital Image Stabilization
Dimensions Unit : mm (inch) Motion Detection Off / On LENS
Privacy Masking Off / On (4ea polygonal + 16ea rectangular zones)
Sens-up (Frame Integration) 2x ~ 60x
Gain Control Off / Low / Medium / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
11118.8.55 ((44..667"7)") Electronic Shutter Speed ESC / A.FLK / Manual
Digital Zoom Off / On (1x ~ 16x) PERIPHERAL
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Built-in
PIP Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear
ØØ110000..00((33.9.49"4) ") ØØ116600..00(6(6.3."3) ") Alarm (MD) output 1, External D/N in 1
Remote Control Interface RS-485
MONITOR
HD-SDI Kit Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
IR Distance 15m (49.21ft) (IR LED : 12ea)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66 CONTROLLER
Electrical
SPH-120R SPH-110C Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Repeater Converter Power Consumption Max. 6W
Accessories (Optional) Mechanical Ivory / Aluminum
Color / Material
Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3" x 4.67") Access Control
System
Weight 952g (2.1 lb)
Transmission Distance
5C2V (75ohm) Max. 100 ~ 140m
L-6CHD (75ohm) Max. 200m
SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM * This transmission distance is theoretically calculated number, and real transmission distance can be affected by installation environment.
* The latest product information / specification can be found at www.samsungsecurity.com
