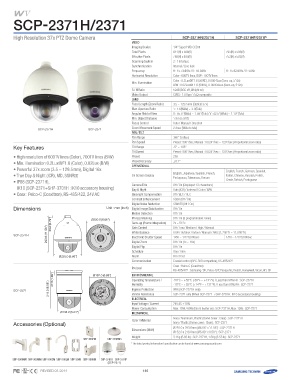

Page 146 - Catalog Samsung 2014
P. 146
-2371H/2371
High Resolution 37x PTZ Dome Camera SCP-2371HN/2371N SCP-2371HP/2371P
Video
Imaging Device 1/4" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0 .02Lux@F1.6 (50IRE), 0.00004Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x)
Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele)
Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
Min. Object Distance 1.8m (5.91ft)
Focus Control Auto / Manual / One shot
SCP-2371H SCP-2371 Zoom Movement Speed 2.8sec (Wide to tele)
Pan / Tilt
Pan Range 360° Endless
Key Features Pan Speed Preset : 500°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
Tilt Range -5° ~ 185°
Tilt Speed Preset : 500°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Preset 255 English, French, German, Spanish,
• Min. illumination 0.2Lux@F1.6 (Color), 0.02Lux (B/W) Preset Accuracy ±0.1° Italian, Chinese, Russian, Polish,
• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x Operational Czech,Turkish, Portuguese
• True Day & Night (ICR), MD, SSNRIII English, Japanese, Spanish, French,
• IP66 (SCP-2371H), On Screen Display Portuguese, Taiwanese, Korean
IK10 (SCP-2371+SHP-3701H : IK10 accessory housing) Camera Title Off / On (Displayed 12 characters)
• Coax : Pelco-C (Coaxitron), RS-485/422, 24V AC Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Dimensions Digital Noise Reduction SSNRIII (Off / On)
Unit : mm (inch) Digital Image Stabilization Off / On
Motion Detection Off / On
2932.936.6( (111.1.565")6") Ø2Ø22020.0.0 ((88.6.66")6") Privacy Masking Off / On (8 programmable zones)
20.0 (20.0.0 (70.979"")) Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Medium / High / Manual
SCP-2371H White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Digital Flip Off / On
Schedule Day / Time
Ø2Ø22200..00(8(.866."6) 6") Alarm 8 In 3 Out
Communication Coaxial control (SPC-300 compatible), RS-485/422
Protocol Coax : Pelco-C (Coaxitron)
RS-485/422 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
218.0 (8.58")
218.0 (8.58") Ø15Ø125.20.0 ((55.9.89") 8") Environmental
27.6 ( 217..60(19.0")9")
Operating Temperature / -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH : SCP-2371H
Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH : SCP-2371
SCP-2371 Ingress Protection IP66 (SCP-2371H only)
Vandal Resistance SCP-2371 only (When SCP-2371 + SHP-3701H : IK10 accessary housing)
Electrical
Input Voltage / Current 24V AC ±10%
Power Consumption Max. 15W / 60W (Fan & heater on) : SCP-2371H, Max. 15W : SCP-2371
Mechanical
Ø13Ø313.32.2 ((55.2.42")4")
Accessories (Optional) Color / Material Ivory / Aluminum, Plastic (Dome Cover : Clear) : SCP-2371H
Dimensions (WxH) Ivory / Plastic (Dome cover : Clear) : SCP-2371
Ø220.0 x 293.6mm (Ø8.66" x 11.56") : SCP-2371H
Ø152.0 x 218.0mm (Ø5.98" x 8.58") : SCP-2371
SBP-300PM SBP-301HM3 Weight 3.1Kg (6.83 lb) : SCP-2371H, 1.6Kg (3.53 lb) : SCP-2371
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300KM SHP-3701H SHP-3701F 146
(SCP-2371)
REVISED 03-2014
