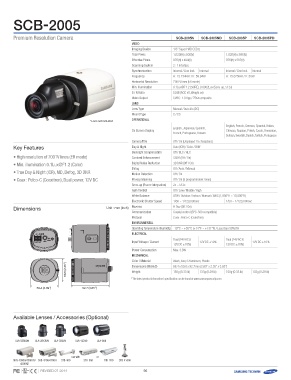

Page 96 - Catalog Samsung 2014
P. 96
-2005
Premium Resolution Camera SCB-2005N SCB-2005ND SCB-2005P SCB-2005PD
Video 1/3" Super HAD CCD II 1,020(H) x 596(V)
Imaging Device 1,020(H) x 508(V)
Total Pixels
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning System 2 : 1 Interlace Internal / Line lock Internal
Synchronization Internal / Line lock Internal H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution 700TV lines (ER mode)
Min. Illumination 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Lens Type Manual / Auto iris (DC)
Mount Type C / CS
* Lens not included Operational
On Screen Display
English, Japanese, Spanish, English, French, German, Spanish, Italian,
French, Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Key Features Camera Title Off / On (Displayed 15 characters)
• High resolution of 700TV lines (ER mode) Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
• Min. illumination 0.1Lux@F1.2 (Color) Digital Noise Reduction 3D DNR (Off / On)
• True Day & Night (ICR), MD, Defog, 3D DNR Defog Off / Auto / Manual
• Coax : Pelco-C (Coaxitron), Dual power, 12V DC Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)
Electronic Shutter Speed
Reverse 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Communication
Dimensions Unit : mm (inch) H-Rev (Off / On)
Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10% Dual (24V AC & 12V DC ±10%
12V DC ±10%) 12V DC ±10%)
5599..66((22..335"5)") Power Consumption Max. 3.6W
Mechanical
Color / Material Black, Ivory / Aluminum, Plastic
Dimensions (WxHxD) 68.4 x 59.6 x 92.7mm (2.69" x 2.35" x 3.65")
Weight 150g (0.33 lb) 133g (0.29 lb) 150g (0.33 lb) 133g (0.29 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
686.84.4(2(2.6.699"")) 929.27.7(3(.36.655")")
Available Lenses / Accessories (Optional)
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 96
