P. 92
-4000

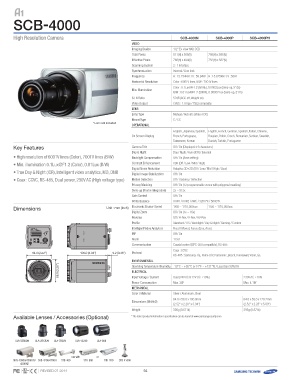

High Resolution Camera SCB-4000N SCB-4000P SCB-4000PH
Video 1/2" Ex-view HAD CCD
Imaging Device
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels
Scanning System 768(H) x 494(V) 752(H) x 582(V)
Synchronization
Frequency 2 : 1 Interlace
Horizontal Resolution
Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
* Lens not included S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Lens Type Manual / Auto iris (Video / DC)
Mount Type C / CS
Operational
English, Japanese, Spanish, English, French, German, Spanish, Italian, Chinese,
On Screen Display French, Portuguese, Russian, Polish, Czech, Romanian, Serbian, Swedish,
Taiwanese, Korean Danish, Turkish, Portuguese
Key Features Camera Title Off / On (Displayed 54 characters)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Day & Night
Backlight Compensation Day / Night / Auto (ICR) / External
Off / On (Area setting)
• Min. illumination 0.1Lux@F1.2 (Color), 0.01Lux (B/W) Contrast Enhancement XDR (Off / Low / Mid / High)
• True Day & Night (ICR), Intelligent video analytics, MD, DNR Digital Noise Reduction
Digital Image Stabilization Adaptive 3D+2D (Off / Low / Mid / High / User)
Off / On
• Coax : CCVC, RS-485, Dual power, 230V AC (High voltage type) Motion Detection Off / Tracking / Detection
Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / On
White Balance ATW1 / ATW2 / AWC / 3200°K / 5600°K
Dimensions Unit : mm (inch) Electronic Shutter Speed 1/60 ~ 1/10,000sec 1/50 ~ 1/10,000sec
Digital Zoom
Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
Intelligent Video Analytics Fixed / Moved, Fence (Line, Area)
PIP Off / On
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible), RS-485
6644.0.0(2(2.5.522"")) 110000.0.0(3(3.9.944"")) 99..22 ((00..3366"")) Protocol Coax : CCVC
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, GE
Environmental
5588..00 ((22..2288"")) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) 230V AC ±10%
Max. 4.1W
Power Consumption Max. 3W
Mechanical
Color / Material Silver / Aluminum, Steel
Dimensions (WxHxD) 64.0 x 58.0 x 100.0mm 64.0 x 58.0 x 129.2mm
(2.52" x 2.28" x 3.94") (2.52" x 2.28" x 5.09")
Weight 305g (0.67 lb) 395g (0.87 lb)
Available Lenses / Accessories (Optional) * The latest product information / specification can be found at www.samsungsecurity.com
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 92
