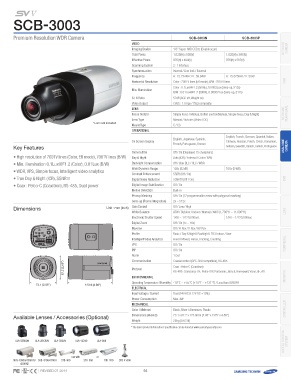

Premium Resolution WDR Camera SCB-3003N SCB-3003P
Video 1/3" Super HAD CCD II (Double scan) 1,028(H) x 596(V) NETWORK
Imaging Device 1,028(H) x 508(V) Camera
Total Pixels
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock / External
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 700TV lines (ER mode), B/W : 700TV lines NVR
Min. Illumination Color : 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite NETWORK
Lens PERIPHERAL
Focus Control Simple focus / Manual, Button control (Manual, Simple focus, Day & Night)
* Lens not included Lens Type Manual / Auto iris (Video / DC)
Mount Type C / CS
Operational
Key Features On Screen Display English, Japanese, Spanish, English, French, German, Spanish, Italian, Analogue
• High resolution of 700TV lines (Color, ER mode), 700TV lines (B/W) French, Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian, Camera
Camera Title Serbian, Swedish, Danish, Turkish, Portuguese
Day & Night Off / On (Displayed 15 characters)
Auto (ICR) / External / Color / B/W
• Min. illumination 0.1Lux@F1.2 (Color), 0.01Lux (B/W) Backlight Compensation Off / User BLC / HLC / WDR 160x (54dB)
Wide Dynamic Range 128x (52dB)
• WDR, VPS, Simple focus, Intelligent video analytics Contrast Enhancement SSDR (Off / On) DVR
Digital Noise Reduction SSNRIII (Off / On)
• True Day & Night (ICR), SSNRIII Digital Image Stabilization Off / On
• Coax : Pelco-C (Coaxitron), RS-485, Dual power Motion Detection Built-in
Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Dimensions Unit : mm (inch) Gain Control Off / Low / High LENS
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic / Day & Night / Backlight / ITS / Indoor / User
Intelligent Video Analytics Fixed / Moved, Fence, Tracking, Counting PERIPHERAL
VPS Off / On
PIP Off / On
Alarm 1 Out
6677..22 ((22..6655"")) Communication Coaxial control (SPC-300 compatible), RS-485
Protocol Coax : Pelco-C (Coaxitron) MONITOR
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon,GE, AD
Environmental
7733..11((22..8888"")) 112233..99 ((44..8888"")) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 4W CONTROLLER
Mechanical
Color / Material Black, Silver / Aluminum, Plastic
Available Lenses / Accessories (Optional) Dimensions (WxHxD) 73.1 x 67.2 x 123.9mm (2.88" x 2.65" x 4.88")
Weight 285g (0.63 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880 Access Control
System
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
