Page 41 - Catalog Samsung 2014
P. 41
-5061

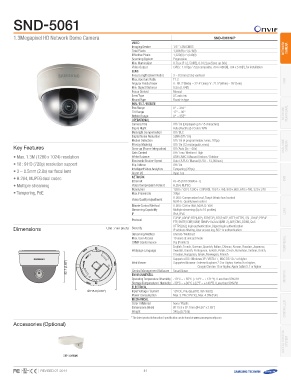

1.3Megapixel HD Network Dome Camera SND-5061N/P
Video 1/3" 1.3M CMOS NETWORK
Imaging Device 1,384(H) x 1,076(V) Camera
Total Pixels 1,329(H) x 1,049(V)
Effective Pixels Progressive NVR
Scanning System 0.7Lux (F1.2, 50IRE), 0.012Lux (Sens-up 60x)
Min. Illumination CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation NETWORK
Video Output PERIPHERAL
Lens 3 ~ 8.5mm (2.8x) varifocal
Key Features Focal Length (Zoom Ratio) F1.2 Analogue
Max. Aperture Ratio H : 88.3°(Wide) ~ 32.4°(Tele) / V : 71.5°(Wide) ~ 26°(Tele) Camera
• Max. 1.3M (1280 x 1024) resolution Angular Field of View 0.5m (1.64ft)
• 16 : 9 HD (720p) resolution support Min. Object Distance Manual DVR
• 3 ~ 8.5mm (2.8x) varifocal lens Focus Control DC auto iris
• H.264, MJPEG dual codec Lens Type Board-in type
• Multiple streaming Mount Type
• Tampering, PoE Pan / Tilt / Rotate 0° ~ 355°
Pan Range 17° ~ 90°
Tilt Range 0° ~ 355°
Rotate Range
Operational Off / On (Displayed up to 15 characters)
Camera Title Auto (Electrical) / Color / B/W
Day & Night Off / BLC
Backlight Compensation SSNR (Off / On)
Digital Noise Reduction Off / On (4 programmable zones, 20fps)
Motion Detection Off / On (12 rectangular zones)
Privacy Masking Off / Auto (2x ~ 60x)
Sens-up (Frame Integration) Off / Low / Medium / High
Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Electronic Shutter Speed Off / On
Flip / Mirror Tampering (20fps)
Intelligent Video Analytics Input 1ea
Alarm I/O
Network RJ-45 (10/100BASE-T)
Ethernet H.264, MJPEG
Video Compression Format 1280 x 1024, 1280 x 720P(HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Resolution 30fps
Max. Framerate
Video Quality Adjustment H.264 : Compression level, Target bitrate level control LENS
MJPEG : Quality level control
9 92.2.77 ((33..665")5") Bitrate Control Method
Streaming Capability H.264 : CBR or VBR, MJPEG : VBR
92.7 (3.65") IP Multiple streaming (Up to 10 profiles)
IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
Dimensions Unit : mm (inch) Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method PERIPHERAL
Max. User Access Unicast / Multicast
ONVIF Conformance 10 users at unicast mode
Yes (Profile S)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher,
Google Chrome 15 or higher, Apple Safari 5.1 or higher
Central Management Software SmartViewer MONITOR
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
ØØ111155..88(4(.456.5")6") Input Voltage / Current 12V DC, PoE (IEEE802.3af class2)
Power Consumption Max. 3.7W (12V DC), Max. 4.3W (PoE)
Mechanical CONTROLLER
Color / Material Ivory / Plastic
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Weight 345g (0.76 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
Accessories (Optional)
Ø115.8 (4.56") Access Control
System
SBP-300WM0 41
REVISED 07-2014
