P. 39
-6083

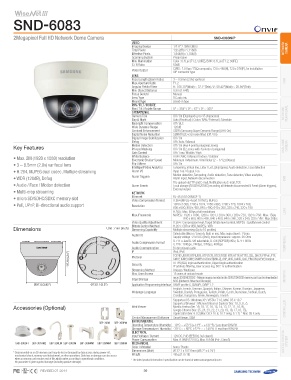

2Megapixel Full HD Network Dome Camera SND-6083N/P
Video 1/2.8" 2.38M CMOS NETWORK
Imaging Device 1,952(H) x 1,116(V) Camera
Total Pixels 1,944(H) x 1,104(V)
Effective Pixels Progressive
Scanning System Color : 0.1Lux (F1.2, 50IRE), B/W : 0.1Lux (F1.2, 50IRE)
Min. Illumination 50dB
S / N Ratio
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation NVR
Lens DIP connector type
Focal Length (Zoom Ratio) NETWORK
Max. Aperture Ratio 3 ~ 8.5mm (2.8x) varifocal PERIPHERAL
Angular Field of View F1.2
Key Features Min. Object Distance H : 106.18°(Wide) ~ 37.1°(Tele) / V : 58.42°(Wide) ~ 20.94°(Tele) Analogue
Focus Control 0.5m (1.64ft) Camera
• Max. 2M (1920 x 1080) resolution Lens Type Manual
• 3 ~ 8.5mm (2.8x) varifocal lens Mount Type DC auto iris DVR
• H.264, MJPEG dual codec, Multiple streaming Pan / Tilt / Rotate Board-in type
• WDR (120dB), Defog Pan / Tilt / Rotate Range
• Audio / Face / Motion detection Operational 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
• Multi-crop streaming Camera Title
• micro SD/SDHC/SDXC memory slot Day & Night Off / On (Displayed up to 45 characters)
• PoE, UPnP, Bi-directional audio support Backlight Compensation Auto (Electrical) / Color / B/W / External / Schedule
Wide Dynamic Range Off / BLC
Contrast Enhancement 120dB
Digital Noise Reduction SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Image Stabilization SSNRIII (2D+3D noise filter) (Off / On)
Defog Off / On
Motion Detection Off / Auto / Manual
Privacy Masking Off / On (4ea 4 points polygonal zones)
Gain Control Off / On (32 zones with 4 points of polygonal)
White Balance Off / Low / Middle / High
Electronic Shutter Speed ATW / AWC / Manual / Indoor / Outdoor
Flip / Mirror Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Intelligent Video Analytics Off / On
Alarm I/O Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm Triggers Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detecton, Video analytics,
Alarm Events Alarm input, Network disconnection
File upload via FTP and E-mail, Notification via E-mail, TCP,
Network Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
Ethernet External output
Video Compression Format
Resolution RJ-45 (10/100BASE-T)
H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, LENS
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Dimensions Unit : mm (inch) Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms PERIPHERAL
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
10170.7.66((44..224"4)") Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Communication G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
IP Bi-directional audio
IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast MONITOR
15 users at unicast mode
Edge Storage micro SD/SDHC/SDXC - Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
ØØ9977..00(3(3.8.28")2") Ø1Ø31322..11 ((55.2."2)") Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 CONTROLLER
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
SBP-300B SBP-300PM Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
SHD-3000F1 SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Electrical Access Control
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Input Voltage / Current 12V DC, PoE (IEEE802.3af class3) System
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Power Consumption Max. 8.09W (12V DC), Max. 8.94W (PoE, Class3)
when a memory card reaches end of life, which varies according to operational conditions. Mechanical
No guarantee is given against damage (including passive damage). Color / Material Ivory / Plastic
Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24")
Weight 485g (1.07 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 39
