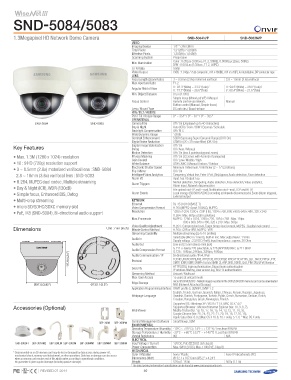

1.3Megapixel HD Network Dome Camera SND-5084N/P SND-5083N/P
Video 1/3" 1.3M CMOS
Imaging Device 1,312(H) x 1,069(V)
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive
Scanning System Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, 50IRE)
Min. Illumination B/W : 0.005Lux (1/30sec, F1.2, 50IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation, DIP connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal 2.8 ~ 10mm (3.6x) varifocal
Max. Aperture Ratio F1.2 H : 94.6°(Wide) ~ 28.8°(Tele) /
Angular Field of View H : 93.3°(Wide) ~ 33.2°(Tele) / V : 68.4°(Wide) ~ 21.6°(Tele)
Min. Object Distance V : 73.7°(Wide) ~ 26.6°(Tele)
0.5m (1.64ft) Manual
Focus Control
Simple focus (Motorized V/F) / Manual
Lens / Mount Type Remote control via network,
Pan / Tilt / Rotate Button control (Manual, Simple focus)
Pan / Tilt / Rotate Range
Operational DC auto iris / Board-in type
Camera Title
Day & Night 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Backlight Compensation
SND-5084 SND-5083 Wide Dynamic Range Off / On (Displayed up to 40 characters)
Contrast Enhancement Auto (ICR) / Color / B/W / External / Schedule
Key Features Digital Noise Reduction Off / BLC
Digital Image Stabilization 130dB
• Max. 1.3M (1280 x 1024) resolution Defog SSDR (Samsung Super Dynamic Range) (Off / On)
• 16 : 9 HD (720p) resolution support Motion Detection SSNRIII (2D+3D noise filter) (Off / On)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens : SND-5084 Privacy Masking Off / On
Gain Control Off / Auto / Manual
2.8 ~ 10mm (3.6x) varifocal lens : SND-5083 White Balance Off / On (4ea 4 points polygonal zones)
• H.264, MJPEG dual codec, Multiple streaming Electronic Shutter Speed Off / On (32 zones with 4 points of polygonal)
• Day & Night (ICR), WDR (130dB) Flip / Mirror Off / Low / Middle / High
• Simple focus, Enhanced DIS, Defog Intelligent Video Analytics ATW / AWC / Manual / Indoor / Outdoor
• Multi-crop streaming Alarm I/O Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• micro SD/SDHC/SDXC memory slot Alarm Triggers Off / On
• PoE, IK8 (SND-5084), Bi-directional audio support Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detecton, Video analytics,
Alarm input, Network disconnection
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 640 x 480, 320 x 240 : Max. 30fps
Dimensions Unit : mm (inch) Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm stereo mini jack)
10170.7.66((44..224"4)") Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication / IP
Bi-directional audio / IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
15 users at unicast mode
ØØ9977..00(3(3.8.28")2") Ø1Ø31322..11 ((55.2."2)") Edge Storage micro SD/SDHC/SDXC - Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SBP-300B SBP-300PM Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Vandal Resistance IK8 N/A
Electrical
Input Voltage / Current 12V DC, PoE (IEEE802.3af class3)
SHD-3000F1 SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Power Consumption Max. 9W (12V DC), Max. 11W (PoE, Class3)
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Mechanical
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Color / Material Ivory / Plastic Ivory / Polycarbonate (PC)
when a memory card reaches end of life, which varies according to operational conditions. Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24")
No guarantee is given against damage (including passive damage). Weight 525g (1.16 lb) 500g (1.1 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 40
