P. 38
-6084

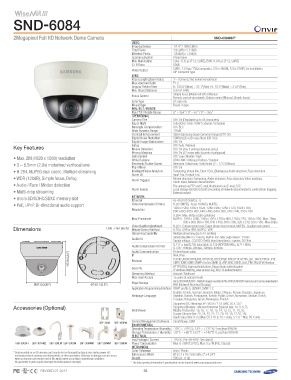

2Megapixel Full HD Network Dome Camera SND-6084N/P
Key Features Video 1/2.8" 2.38M CMOS
Imaging Device 1,952(H) x 1,116(V)
• Max. 2M (1920 x 1080) resolution Total Pixels 1,944(H) x 1,104(V)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Effective Pixels Progressive
• H.264, MJPEG dual codec, Multiple streaming Scanning System Color : 0.1Lux (F1.2, 50IRE), B/W : 0.01Lux (F1.2, 50IRE)
• WDR (120dB), Simple focus, Defog Min. Illumination 50dB
• Audio / Face / Motion detection S / N Ratio CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
• Multi-crop streaming Video Output DIP connector type
• micro SD/SDHC/SDXC memory slot Lens
• PoE, UPnP, Bi-directional audio support Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual
Lens Type Remote control via network, Button control (Manual, Simple focus)
Mount Type DC auto iris
Pan / Tilt / Rotate Board-in type
Pan / Tilt / Rotate Range
Operational 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Camera Title
Day & Night Off / On (Displayed up to 45 characters)
Backlight Compensation Auto (ICR) / Color / B/W / External / Schedule
Wide Dynamic Range Off / BLC
Contrast Enhancement 120dB
Digital Noise Reduction SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Image Stabilization SSNRIII (2D+3D noise filter) (Off / On)
Defog Off / On
Motion Detection Off / Auto / Manual
Privacy Masking Off / On (4ea 4 points polygonal zones)
Gain Control Off / On (32 zones with 4 points of polygonal)
White Balance Off / Low / Middle / High
Electronic Shutter Speed ATW / AWC / Manual / Indoor / Outdoor
Flip / Mirror Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Intelligent Video Analytics Off / On
Alarm I/O Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm Triggers Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detecton, Video analytics,
Alarm Events Alarm input, Network disconnection
File upload via FTP and E-mail, Notification via E-mail, TCP,
Network Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
Ethernet External output
Video Compression Format
Resolution RJ-45 (10/100BASE-T)
H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Dimensions Unit : mm (inch) Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
10170.7.66((44..224"4)") Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Communication G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
IP Bi-directional audio
Protocol IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
15 users at unicast mode
ØØ9977..00(3(3.8.28")2") Ø1Ø31322..11 ((55.2."2)") Edge Storage micro SD/SDHC/SDXC - Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SBP-300B SBP-300PM Central Management Software SmartViewer, SSM
Environmental
SHD-3000F1 SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Electrical
when a memory card reaches end of life, which varies according to operational conditions. Input Voltage / Current 12V DC, PoE (IEEE802.3af class3)
No guarantee is given against damage (including passive damage). Power Consumption Max. 8.79W (12V DC), Max. 9.57W (PoE, Class3)
Mechanical
Color / Material Ivory / Plastic
Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24")
Weight 505g (1.11 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 38
