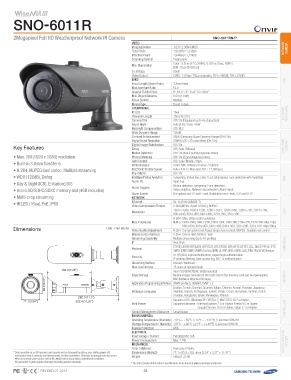

Page 33 - Catalog Samsung 2014
P. 33
-6011R
2Megapixel Full HD Weatherproof Network IR Camera SNO-6011RN/P
Video 1/2.8" 2.38M CMOS NETWORK
Imaging Device 1,952(H) x 1,236(V) Camera
Total Pixels 1,944(H) x 1,224(V)
Effective Pixels
Scanning System Progressive
Min. Illumination Color : 0.3Lux (F2.0, 50IRE), 0.03Lux (2sec, 50IRE)
B/W : 0Lux (IR LED on)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P)
Lens
NVR
Focal Length (Zoom Ratio) 3.8mm fixed
Max. Aperture Ratio F2.0
Angular Field of View H : 84.5° / V : 45.8° / D : 98.8°
Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Mount Type Board-in type NETWORK
Operational PERIPHERAL
IR LED 16ea
Viewable Length 15m (49.21ft)
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Key Features Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On) Analogue
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On) Camera
• Max. 2M (1920 x 1080) resolution Digital Image Stabilization Off / On
• Built-in 3.8mm fixed lens Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32ea polygonal zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
• H.264, MJPEG dual codec, Multiple streaming Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 12,000sec) DVR
• WDR (120dB), Defog Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection with metadata
• Day & Night (ICR), Enhanced DIS Alarm I/O Input 1ea
• micro SD/SDHC/SDXC memory slot (4GB included) Motion detection, Tampering, Face detection,
• Multi-crop streaming Alarm Triggers Video analytics, Network disconnection, Alarm input
• IR LED (16ea), PoE, IP66 File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
Alarm Events
Network RJ-45 (10/100BASE-T)
Ethernet H.264 (MPEG-4 part 10/AVC), MJPEG
Video Compression Format
Resolution 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, LENS
800 x 600, 800 x 450, 640 x 480, 320 x 240, 320 x 180
Dimensions Max. Framerate H.264 : Max. 30fps at all resolutions
MJPEG : 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
Unit : mm (inch) Video Quality Adjustment PERIPHERAL
Bitrate Control Method 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
118855..00((77.2.82"8) ") Streaming Method Unicast / Multicast MONITOR
Max. User Access
838.3.00((33..2277")") 15 users at unicast mode
Edge Storage
micro SD/SDHC/SDXC (4GB included)
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
7777.1.1((33..0044")") 28228.20.0(1(111..11"") ) Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, CONTROLLER
30320.24.4(1(111..9911")") Web Viewer Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9.0 or Higher,
Google Chrome 15.0 or Higher, Safari 5.1 or Higher
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66 Access Control
Electrical PoE (IEEE802.3af) System
Input Voltage / Current
Power Consumption Max. 7.7W
Mechanical Dark gray / Plastic
Color / Material
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Dimensions (WxHxD) 77.1 x 83.0 x 302.4mm (3.04" x 3.27" x 11.91")
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Weight 560g (1.23 lb)
when a memory card reaches end of life, which varies according to operational conditions.
No guarantee is given against damage (including passive damage). * The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 33
