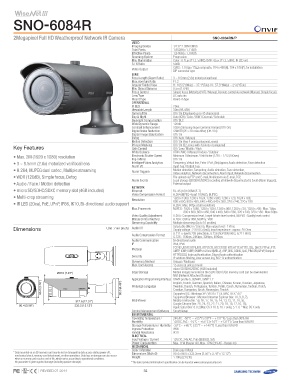

2Megapixel Full HD Weatherproof Network IR Camera SNO-6084RN/P
Video
Imaging Device 1/2.8" 2.38M CMOS
Total Pixels 1,952(H) x 1,116(V)
Effective Pixels 1,944(H) x 1,104(V)
Scanning System Progressive
Min. Illumination Color : 0.1Lux (F1.2, 50IRE), B/W : 0Lux (F1.2, 50IRE, IR LED on)
S / N Ratio 50dB
CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Video Output DIP connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type DC auto iris
Mount Type Board-in type
Operational
IR LED 20ea
Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Key Features Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 2M (1920 x 1080) resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/30 ~ 1/12,000sec)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Flip / Mirror Off / On
• H.264, MJPEG dual codec, Multiple streaming Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
• WDR (120dB), Simple focus, Defog Alarm I/O Input 1ea / Output 1ea
• Audio / Face / Motion detection Motion detection, Tampering, Audio detection, Face detection,
• micro SD/SDHC/SDXC memory slot (4GB included) Alarm Triggers Video analytics, Network disconnection, Alarm input, Network disconnection
• Multi-crop streaming
• IR LED (20ea), PoE, UPnP, IP66, IK10, Bi-directional audio support Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP,
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
Resolution 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Selectable (Mic in / Line in), Max output level : 1 Vrms
Dimensions Unit : mm (inch) Audio I/O Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC (4GB included)
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
20200.00.0((77..8877"") ) NAS (Network Attached Storage)
9966..08 ((33..871"8)") Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
9 90.0.00 ((44..449"9)") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
313212.6.6 ((1122..3311")") Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
333333..22(1(13.312.1")2") Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
9090.4.4 ((33..5566")") Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer
Environmental
Operating Temperature / 24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
Humidity 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption Max. 11W (Heater off), Max. 17W (24V AC - Heater on)
Mechanical
Color / Material Dark gray / Metal
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Dimensions (WxHxD) 90.4 x 96.0 x 333.2mm (3.56" x 3.78" x 13.12")
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Weight 1.19Kg (2.62 lb)
when a memory card reaches end of life, which varies according to operational conditions.
No guarantee is given against damage (including passive damage). * The latest product information / specification can be found at www.samsungsecurity.com
