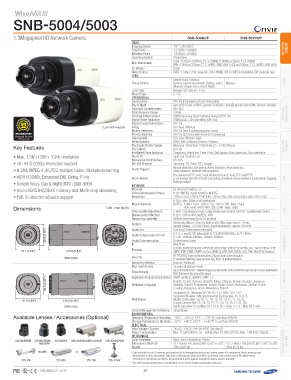

1.3Megapixel HD Network Camera SNB-5004N/P SNB-5003N/P
Video NETWORK
Imaging Device 1/3" 1.3M CMOS Camera
Total Pixels 1,312(H) x 1,069(V)
Effective Pixels 1,305(H) x 1,049(V)
Scanning System Progressive
Min. Illumination Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE)
B/W : 0.005Lux (1/30sec, F1.2, 50IRE) : SNB-5004, 0.05Lux (1/30sec, F1.2, 50IRE) : SNB-5003
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation, DIP connector type
Lens
Focus Control Simple focus / Manual NVR
Remote control via network, Button control Manual
(Manual, Simple focus, Day & Night)
Lens Type Manual / DC auto iris, P-Iris
Mount Type C / CS
Operational
Camera Title Off / On (Displayed up to 40 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule Auto (Electrical) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC NETWORK
Wide Dynamic Range 130dB PERIPHERAL
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
* Lens not included Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor Analogue
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) Camera
Key Features Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
• Max. 1.3M (1280 x 1024) resolution Alarm I/O Input 1ea / Output 1ea
• 16 : 9 HD (720p) resolution support Remote Control Interface RS-485
• H.264, MPEG-4, MJPEG multiple codec, Multiple streaming RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin
• WDR (130dB), Enhanced DIS, Defog, P-Iris
• Simple focus, Day & Night (ICR) : SNB-5004 Alarm Triggers Motion detection, Tampering, Audio detection, Face detecton,
• micro SD/SDHC/SDXC memory slot, Multi-crop streaming Video analytics, Network disconnection
• PoE, Bi-directional audio support
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, DVR
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Dimensions Unit : mm (inch) Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps
LENS
800 x 600, 640 x 480, 320 x 240 : Max. 30fps
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
666.6.66((22..6622"")) Audio Out Line out (3.5mm stereo mini jack)
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz PERIPHERAL
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication
Bi-directional audio
IP IPv4, IPv6
7733..11 ((22..8888")") 141477.8.8((55..8822"")) Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SNB-5004 SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
66.6 (2.62") IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
15 users at unicast mode
Edge Storage micro SD/SDHC/SDXC - Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded MONITOR
NAS (Network Attached Storage)
6666..66 ((22..662"2)") Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
73.1 (2.88") 147.8 (5.82") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Webpage Language Croatian, Hungarian, Greek, Norwegian, Finnish
7733..11((22.8.88"8)") 113366..22 ((55..3366")") Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 CONTROLLER
SNB-5003 Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
66.6 (2.62") Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer
Environmental
Available Lenses / Accessories (Optional) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class3)
73.1 (2.88") Power Consum1p3t6io.2n(5.36") Max. 12.5W (24V AC, 50 ~ 60Hz), Max. 10.5W (12V DC), Max. 12W (PoE, Class3) Access Control
Mechanical System
SLA-M2890DN SLA-M 3180DN/ SLA-M2882 SHB-4300H/4300H1/4300H2 SHB-4200/4200H Color / Material Black, Ivory / Aluminium, Plastic
M3180PN Dimensions (WxHxD) 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82") 73.1 x 66.6 x 136.2mm (2.88" x 2.62" x 5.36")
Weight 395g (0.87 lb) 330g (0.73 lb)
use with or * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card
STH-200 detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies
STB-400 STH-500 STB-4150V according to operational conditions. No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
