Page 28 - Catalog Samsung 2014
P. 28
-5001

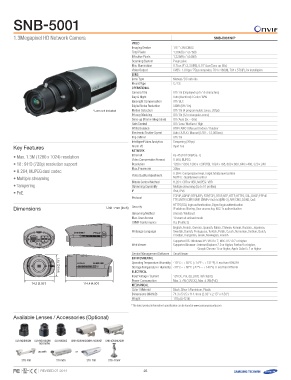

1.3Megapixel HD Network Camera SNB-5001N/P
* Lens not included Video 1/3" 1.3M CMOS
Imaging Device 1,384(H) x 1,076(V)
Key Features Unit : mm (inch) Total Pixels 1,329(H) x 1,049(V)
• Max. 1.3M (1280 x 1024) resolution Effective Pixels Progressive
• 16 : 9 HD (720p) resolution support Scanning System 0.7Lux (F1.2, 50IRE), 0.011Lux (Sens-up 60x)
• H.264, MJPEG dual codec Min. Illumination CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
• Multiple streaming Video Output
• Tampering Lens Manual / DC auto iris
• PoE Lens Type C / CS
Mount Type
Dimensions Operational Off / On (Displayed up to 15 characters)
Camera Title Auto (Electrical) / Color / B/W
Day & Night Off / BLC
Backlight Compensation SSNR (Off / On)
Digital Noise Reduction Off / On (4 programmable zones, 20fps)
Motion Detection Off / On (12 rectangular zones)
Privacy Masking Off / Auto (2x ~ 60x)
Sens-up (Frame Integration) Off / Low / Medium / High
Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Electronic Shutter Speed Off / On
Flip / Mirror Tampering (20fps)
Intelligent Video Analytics Input 1ea
Alarm I/O
Network RJ-45 (10/100BASE-T)
Ethernet H.264, MJPEG
Video Compression Format 1280 x 1024, 1280 x 720P(HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Resolution 30fps
Max. Framerate H.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
Video Quality Adjustment H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
Bitrate Control Method IPv4, IPv6
Streaming Capability TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
IP FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
HTTPS(SSL) login authentication, Digest login authentication
Protocol IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
Security 10 users at unicast mode
Yes (Profile S)
Streaming Method English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Max. User Access Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
ONVIF Conformance Croatian, Hungarian, Greek, Norwegian, Finnish
Webpage Language
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher,
Google Chrome 15 or higher, Apple Safari 5.1 or higher
Central Management Software SmartViewer
5544..55 ((22..1155"")) Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC, PoE (IEEE802.3af class2)
7744..33 ((22..9933"")) 111144..44 ((44..5500"")) Power Consumption Max. 3.7W (12V DC), Max. 4.3W (PoE)
Mechanical
Color / Material Black, Silver / Aluminium, Plastic
Dimensions (WxHxD) 74.3 x 54.5 x 114.4mm (2.93" x 2.15" x 4.50")
Weight 170g (0.42 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
Available Lenses / Accessories (Optional)
SLA-M2890DN SLA-M3180DN/ SLA-M2882 SHB-4300H/4300H1/4300H2 SHB-4200/4200H
M3180PN
use with or
STB-400 STH-500 STH-200 STB-4150V
REVISED 07-2014 28
