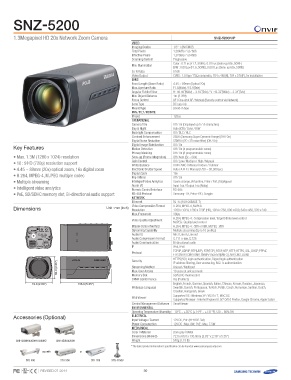

Page 30 - Catalog Samsung 2014
P. 30
-5200
1.3Megapixel HD 20x Network Zoom Camera SNZ-5200N/P
Key Features Video 1/3" 1.3M CMOS
Imaging Device 1,384(H) x 1,076(V)
• Max. 1.3M (1280 x 1024) resolution Total Pixels 1,329(H) x 1,049(V)
• 16 : 9 HD (720p) resolution support Effective Pixels Progressive
• 4.45 ~ 89mm (20x) optical zoom, 16x digital zoom Scanning System Color : 0.7Lux (F1.2, 50IRE), 0.01Lux (Sens-up 60x, 50IRE)
• H.264, MPEG-4, MJPEG multiple codec B/W : 0.08Lux (F1.6, 50IRE), 0.001Lux (Sens-up 60x, 50IRE)
• Multiple streaming Min. Illumination 52dB
• Intelligent video analytics CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
• PoE, SD/SDHC memory slot, Bi-directional audio support S / N Ratio
Video Output 4.45 ~ 89mm (Optical 20x)
Dimensions Unit : mm (inch) Lens F1.6(Wide) / F2.9(Tele)
Focal Length (Zoom Ratio) H : 56.56˚(Wide) ~ 3.10˚(Tele) / V : 43.32˚(Wide) ~ 2.34˚(Tele)
Max. Aperture Ratio 1m (3.28ft)
Angular Field of View AF / One-shot AF / Manual (Remote control via Network)
Min. Object Distance DC auto iris
Focus Control Board-in type
Lens Type
Mount Type 128ea
Pan / Tilt / Rotate
Preset Off / On (Displayed up to 15 characters)
Operational Auto (ICR) / Color / B/W
Camera Title Off / BLC / HLC
Day & Night SSDR (Samsung Super Dynamic Range) (Off / On)
Backlight Compensation SSNRIII (2D+3D noise filter) (Off / On)
Contrast Enhancement Off / On
Digital Noise Reduction Off / On (4 programmable zones)
Digital Image Stabilization Off / On (8 programmable zones)
Motion Detection Off / Auto (2x ~ 60x)
Privacy Masking Off / Low / Medium / High / Manual
Sens-up (Frame Integration) ATW / AWC / Manual / Indoor / Outdoor
Gain Control Auto / A.FLK / Manual (1/30 ~ 30,000sec)
White Balance 16x
Electronic Shutter Speed Off / On
Digital Zoom Scene change, Virtual line, Enter / Exit, (Dis)Appear
Flip / Mirror Input 1ea / Output 1ea (Relay)
Intelligent Video Analytics RS-485
Alarm I/O Samsung-T/E, Pelco-P/D, Sungjin
Remote Control Interface
RS-485 Protocol RJ-45 (10/100BASE-T)
Network H.264, MPEG-4, MJPEG
Ethernet 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Video Compression Format 30fps
Resolution
Max. Framerate
Video Quality Adjustment H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method
Streaming Capability H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Audio I/O Multiple streaming (Up to 10 profiles)
Audio Compression Format Mic / Line in, Line out
Audio Communication G.711 u-law, G.726
IP Bi-directional audio
IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
606.0.00( (22..3366"")) Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
Memory Slot 10 users at unicast mode
ONVIF Conformance SD/SDHC memory slot
Yes (Profile S)
7722..00 ((22..8833")") 131366.0.0 ((55..3355")") Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0/7.0/8.0 Firefox, Google Chrome, Apple Safari
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / 20 ~ 80% RH
Accessories (Optional) Electrical
Input Voltage / Current 12V DC, PoE (IEEE802.3af)
Power Consumption 12V DC : Max. 8W, PoE : Max. 7.5W
Mechanical
Color / Material Dark gray / Metal
Dimensions (WxHxD) 72.0 x 60.0 x 136.0mm (2.83" x 2.36" x 5.35")
SHB-4300H/4300H1/4300H2 SHB-4200/4200H Weight 540g (1.19 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
use with or
STB-400 STH-500 STH-200 STB-4150V
REVISED 07-2014 30
