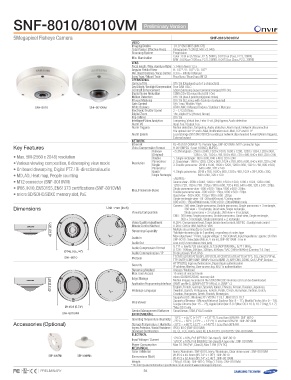

Page 34 - Catalog Samsung 2014
P. 34
-8010/8010VM Preliminary Version
5Megapixel Fisheye Camera SNF-8010/8010VM
Video
Imaging Device 1/1.8" 6M CMOS (IMX178)
Total Pixels / Effective Pixels 6megapixel / 5.2M (2,560 x 2,048)
Scanning System Progressive
Color : 0.9Lux (1/30sec, F2.5, 50IRE), 0.015Lux (2sec, F2.5, 30IRE)
Min. Illumination B/W : 0.09Lux (1/30sec, F2.5, 50IRE), 0.0015Lux (2sec, F2.5, 30IRE)
Lens
Focal length / Max. Aperture Ratio 1.14mm fixed / F2.5
Angular Field of View H : 187° / V : 187° / D : 187°
Min. Object Distance / Focus Control 0.3m ~ Infinity / Manual
Lens Type / Mount Type Fixed lens / Board type (M12)
Operational
Camera Title Off / On (Displayed up to 15 characters)
Day & Night / Backlight Compensation True D&N / BLC
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNR (2D+3D noise filter) (Off / On)
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury
SNF-8010 SNF-8010VM Electronic Shutter Speed 2 ~ 1/12,000sec
Digital Zoom 16x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Motion detection, Tampering, Audio detection, Alarm input, Network disconnection
File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP
Alarm Events Local storage (SD/SDHC/SDXC) recording at network disconnected & event (Alarm triggers),
External output
Network
Ethernet RJ-45 (10/100BASE-T) : Female type, SNF-8010VM : M12 connector type
Key Features Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Fisheye <5.3M original> 2560 x 2048, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960,
• Max. 5M (2560 x 2048) resolution (Original) 1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480, 320 x 240
• Various viewing composition, 6 dewarping view mode Double 1. Single rectangle : 800 x 600, 640 x 480, 320 x 240
• On board dewarping, Digital PTZ / Bi-directional audio Panorama / 2. Quad view : 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240
• MD, AD, Heat map, People counting Resolution Singla 3. Double panorama : 2 048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600,
• M12 connector (SNF-8010VM)
• IP66, IK10, EN50155, EN61373 certifications (SNF-8010VM) Panorama / 640 x 480, 320 x 240
• micro SD/SDHC/SDXC memory slot, PoE Quad / 4. Single panaroma : 2048 x 768, 1600 x 600, 1280 x 480, 1024 x 384, 800 x 300,
Single Rectangle 640 x 240, 320 x 120
Source view - 2560 x 2048, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960,
1280 x 720, 1024 x 768 : 15fps / 800 x 600, 720 x 480, 640 x 480, 320 x 240 : 20fps
Single panorama view - 800 x 600 : 15fps / 800 x 600 : 20fps
Max. Framerate (Raw) Double panorama view - 800 x 600 : 15fps / 800 x 600 : 20fps
Quad view - 800 x 600 : 15fps / 800 x 600 : 20fps
Single rectangle view - All : 20fps@Ground / Ceiling mode
800 x 600 : 15fps@Wall mode / 800 x 600 : 20fps@Wall mode
Camera : 3 60 view, Single panorama, Double panorama, Single panorama + 3 rectangle,
Dimensions Unit : mm (inch) 360 view + 3 rectangle, Quad view, Single rectangle,
Ø145.9 (5.74") Viewing Composition Single panorama + 2 rectangle, 360 view + 8 rectangle
CMS : 360 view, Single panorama, Double panorama, Quad view, Single rectangle,
360 + 3 rectangle, Single panorama + 2 rectangle
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
494.9.66 ((1.915.")95") Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 3 profiles)
Streaming Capability *Multiple straming (Up to 5 profiles), regardless of codec type
Audio In Max output level : 1 Vrms, Supply voltage : 2.5V DC(4mA), Input impedance : approx. 2K Ohm
SNF-8010 : Selectable (Mic in / Line in), SNF-8010VM : Line in
Audio Out Line out (3.5mm stereo mini jack)
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz,
Ø14Ø514.59.9 ((55.74."7) 4") Audio Compression Format G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps / AAC (16Khz/48Khz) (Coming '14. Sep)
SNF-8010
Audio Communication / IP Bi-directional / IPv4, IPv6
TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE,
49.6 (1.95") Protocol FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Ø128.8 (5.07")
62.554.7((2.21.9"4)6") Edge Storage micro SD/SDHC/SDXC memory slot
Motion images recorded in the SDX/SDHC/SD memory card can be downloaded
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API) v2.0, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Supported OS : Windows XP / VISTA / 7 / 8.1, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
Web Viewer Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 Only), 5.1.7)
Ø14Ø512.89.8 ((55.07."7) 4") *Mac OS X only
SNF-8010VM Central Management Software SmartViewer, SSM, iPOLiS mobile
Environmental
Accessories (Optional) 55.7 (2.19") -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH : SNF-8010
Operating Temperature / Humidity -25°C ~ +55°C (-13°F ~ +131°F) / Less than 90% RH : SNF-8010VM
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10 (SNF-8010VM)
Standard Certification UL, CE, FCC, RoHS, Gost, KC (EN-61373, EN-50155 : SNF-8010VM)
Electrical
12V DC ±10%, PoE (IEEE802.3af class3) : SNF-8010
Input Voltage / Current 12V DC ±10%, PoE (IEEE802.3af class3) A type only : SNF-8010VM
Power Consumption Max 10.2W (PoE, Class3), Max 7.8W (12V DC)
Mechanical
Color / Material Ivory / Aluminum : SNF-8010, Ivory / Aluminum, Clear dome cover : SNF-8010VM
Ø145.9 x 49.6mm (Ø5.74" x 1.95") : SNF-8010
SBP-300TM1 SBP-300HM5 Demensions (WxH) Ø145.9 x 62.4mm (Ø5.74" x 2.46") : SNF-8010VM
Weight 750g (1.65 lb) : SNF-8010, 790g (1.74 lb) : SNF-8010VM
* The latest product information / specification can be found at www.samsungsecurity.com
Preliminary 34
