Page 37 - Catalog Samsung 2014
P. 37
-7061

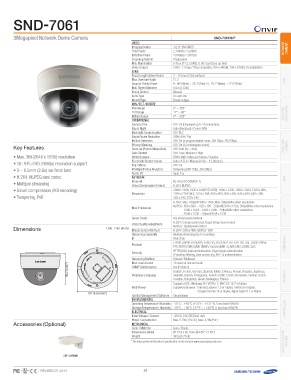

3Megapixel Network Dome Camera SND-7061N/P
Video 1/2.8" 3M CMOS NETWORK
Imaging Device 2,144(H) x 1,588(V) Camera
Total Pixels 2,096(H) x 1,561(V)
Effective Pixels
Scanning System Progressive
Min. Illumination 0.4Lux (F1.2, 50IRE), 0.007Lux (Sens-up 60x)
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) varifocal
Max. Aperture Ratio F1.2 NVR
Angular Field of View H : 96°(Wide) ~ 35.3°(Tele) / V : 70.2°(Wide) ~ 27.5°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Lens Type DC auto iris
Mount Type Board-in type
Pan / Tilt / Rotate 0° ~ 355° NETWORK
Pan Range 17° ~ 90° PERIPHERAL
Tilt Range
Rotate Range 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (Electrical) / Color / B/W
Backlight Compensation Off / BLC
Key Features Digital Noise Reduction SSNR (Off / On) Analogue
Motion Detection Off / On (4 programmable zones, 3M 15fps, 2M 20fps) Camera
• Max. 3M (2048 x 1536) resolution Privacy Masking Off / On (12 rectangular zones)
• 16 : 9 Full HD (1080p) resolution support Sens-up (Frame Integration) Off / Auto (2x ~ 60x)
• 3 ~ 8.5mm (2.8x) varifocal lens Gain Control Off / Low / Medium / High
• H.264, MJPEG dual codec White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering (3M 15fps, 2M 20fps)
Alarm I/O Input 1ea
Network
DVR
• Multiple streaming Ethernet RJ-45 (10/100BASE-T)
• Smart compression (ROI encoding) Video Compression Format
• Tampering, PoE H.264, MJPEG
Resolution
2048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960,
1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360,
320 x 240, 320 x 180
Max. Framerate H .264 : Max. 20fps@2048 x 1536, Max. 30fps@the other resolutions LENS
M JPEG : 8 00 x 600 ~ 320 x 180 - 20fps@2048 x 1536, 30fps@the other resolutions
1280 x 1024 ~1920 x 1080 - 15fps@the other resolutions
2048 x 1536 - 10fps@2048 x 1536
9 92.2.77 ((33..665")5") Smart Codec Yes (Area based method)
Dimensions 92.7 (3.65")Unit : mm (inch)Video Quality AdjustmentH.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method PERIPHERAL
Streaming Capability H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 5 profiles)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
ONVIF Conformance Yes (Profile S)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, MONITOR
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Web Viewer Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher,
ØØ111155..88(4(.456.5")6") Google Chrome 15 or higher, Apple Safari 5.1 or higher
Central Management Software SmartViewer
Environmental CONTROLLER
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Accessories (Optional) Electrical 12V DC, PoE (IEEE802.3af)
Input Voltage / Current Max. 3.7W (12V DC), Max. 4.3W (PoE)
Power Consumption Access Control
Mechanical Ivory / Plastic System
Color / Material Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Dimensions (WxH)
Ø115.8 (4.56") Weight 345g (0.76 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-300WM0
REVISED 07-2014 37
