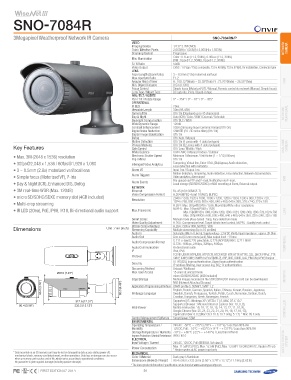

3Megapixel Weatherproof Network IR Camera SNO-7084RN/P
Video 1/2.8" 3.2M CMOS NETWORK
Imaging Device Camera
Total / Effective Pixels 2,065(H) x 1,565(V) / 2,065(H) x 1,553(V)
Scanning System Progressive
Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE)
Min. Illumination B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation, Connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele) NVR
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type / Mount Type DC auto iris, P-Iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
IR LED 20ea
Viewable Length 30m (98.43ft) NETWORK
Camera Title Off / On (Displayed up to 45 characters) PERIPHERAL
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones with 4-sided polygon) Analogue
Privacy Masking Off / On (32 zones with 4-sided polygon) Camera
Key Features Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 3M (2048 x 1536) resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080 Flip / Mirror Off / On
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection,
• Simple focus (Motorized VF), P-Iris Intelligent Video Analytics Face detection with metadata
• Day & Night (ICR), Enhanced DIS, Defog
• 3M real-time WDR (Max. 120dB) Alarm I/O Input 1ea / Output 1ea
• micro SD/SDHC/SDXC memory slot (4GB included) Motion detection, Tampering, Audio detection, Face detection, Network disconnection,
• Multi-crop streaming Alarm Triggers Video analytics, Alarm input DVR
• IR LED (20ea), PoE, IP66, IK10, Bi-directional audio support
Alarm Events File upload via FTP and E-mail, Notification via E-mail,
Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
Resolution 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions
MJPEG : M ax. 10fps@2048 x 1536
Max. Framerate Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 LENS
Smart Codec Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Video Quality Adjustment Manual mode (Area-based : 5ea), Face detection mode
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Dimensions Unit : mm (inch) Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz PERIPHERAL
Audio Compression Format G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode MONITOR
20200.00.0((77..8877"") ) micro SD/SDHC/SDXC (4GB included)
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
9966..08 ((33..871"8)") Edge Storage NAS (Network Attached Storage)
9 90.0.00 ((44..449"9)")
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
313212.6.6 ((1122..3311")") Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 CONTROLLER
333333..22(1(13.312.1")2") Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8),
9090.4.4 ((33..5566")") Web Viewer Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / 24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
Humidity 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Access Control
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH System
Ingress Protection / Vandal Resistance IP66 / IK10
Electrical
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class3)
Max. 11.5W (12V DC), Max. 12.5W (PoE), Max. 13.0W / 19.0W (24V AC, Heater off / on)
Power Consumption * Heater works at AC power input only
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Mechanical
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Color / Material Dark gray / Aluminium
when a memory card reaches end of life, which varies according to operational conditions. Dimensions (WxHxD) / Weight 90.4 x 96.0 x 333.2mm (3.56" x 3.78" x 13.12") / 1.19Kg (2.62 lb)
No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
