Page 25 - Catalog Samsung 2014
P. 25
-6004

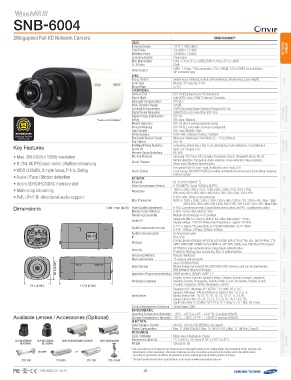

2Megapixel Full HD Network Camera SNB-6004N/P
Video 1/2.8" 2.38M CMOS NETWORK
Imaging Device 1,952(H) x 1,116(V) Camera
Total Pixels 1,944(H) x 1,104(V)
Effective Pixels Progressive NVR
Scanning System Color : 0.1Lux (F1.2, 50IRE), B/W : 0.01Lux (F1.2, 50IRE)
* Lens not included Min. Illumination 50dB NETWORK
S / N Ratio CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation PERIPHERAL
Video Output DIP connector type
Key Features Lens Analogue
Focus Control Simple focus / Manual, Button control (Manual, Simple focus, Day & Night) Camera
• Max. 2M (1920 x 1080) resolution Lens Type Manual / DC auto iris, P-Iris
• H.264, MJPEG dual codec, Multiple streaming Mount Type C / CS
• WDR (120dB), Simple focus, P-Iris, Defog Operational
• Audio / Face / Motion detection Camera Title Off / On (Displayed up to 45 characters)
• micro SD/SDHC/SDXC memory slot Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Multi-crop streaming Backlight Compensation Off / BLC
• PoE, UPnP, Bi-directional audio support Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Dimensions Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm I/O Input 1ea / Output 1ea
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Alarm Triggers Motion detection, Tampering, Audio detection, Face detecton, Video analytics,
Alarm input, Network disconnection
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP, DVR
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
Network External output
Ethernet
Video Compression Format RJ-45 (10/100BASE-T)
Resolution H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Unit : mm (inch) Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control LENS
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication
Bi-directional audio
IP IPv4, IPv6
PERIPHERAL
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
15 users at unicast mode
6666..66 ((22..6622")")
Edge Storage micro SD/SDHC/SDXC
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
MONITOR
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
7733..11 ((22..8888"")) 114477.8.8(5(5.8.82"2)") Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9), CONTROLLER
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Available Lenses / Accessories (Optional) Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class3)
Power Consumption Max. 11.44W (24V AC), Max. 10.1W (12V DC), Max. 11.1W (PoE, Class3)
Mechanical Access Control
Color / Material Black, Ivory / Aluminium, Plastic System
Dimensions (WxHxD) 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
SLA-M2890DN/ SLA-M3180DN/ SHB-4300H/4300H1/4300H2 SHB-4200/4200H Weight 395g (0.87 lb)
M2890PN M3180PN
use with or * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card
STH-200 detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies
STB-400 STH-500 STB-4150V according to operational conditions. No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 25
