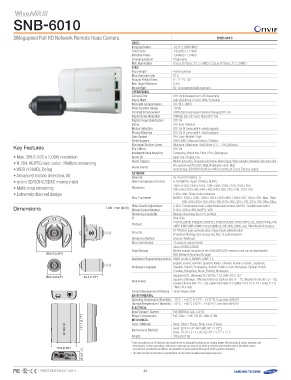

Page 24 - Catalog Samsung 2014
P. 24
-6010
2Megapixel Full HD Network Remote Head Camera SNB-6010
Key Features Video 1/2.8" 2.38M CMOS
Imaging Device 1,952(H) x 1,116(V)
• Max. 2M (1,920 x 1,080) resolution Total Pixels 1,944(H) x 1,104(V)
• H.264, MJPEG dual codec, Multiple streaming Effective Pixels Progressive
• WDR (120dB), Defog Scanning System 0.5Lux (1/30sec, F2.5, 50IRE), 0.22Lux (1/30sec, F2.5, 30IRE)
• Advanced motion detection, VA Min. Illumination
• micro SD/SDHC/SDXC memory slot Lens 4.6mm pinhole
• Multi-crop streaming Focal length F2.5
• Extremely discreet design Max. Aperture ratio H : 71° / V : 38°
Angular Field of View 0.3m
Min. Object Distance RJ-12 connected with main unit
Mount Type
Operational Off / On (Displayed up to 45 characters)
Camera Title Auto (Electrical) / Color / B/W / Schedule
Day & Night Off / BLC / WDR
Backlight Compensation 120dB
Wide Dynamic Range SSDR (Samsung Super Dynamic Range) (Off / On)
Contrast Enhancement SSNRIII (2D+3D noise filter) (Off / On)
Digital Noise Reduction Off / On
Digital Image Stabilization Off / Auto / Manual
Defog Off / On (4 zones with 4-sided polygon)
Motion Detection Off / On (4 zones with 4-sided polygon)
Privacy Masking Off / Low / Middle / High
Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Minimum / Maximum / Anti flicker (1.2 ~ 1/10,000sec)
Electronic Shutter Speed Off / On
Flip / Mirror Tampering, Virtual line, Enter / Exit, (Dis)Appear
Intelligent Video Analytics Input 1ea / Output 1ea
Alarm I/O Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection
Alarm Triggers
Alarm Events File upload via FTP and E-Mail, Notification via E-Mail
local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
Resolution 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 30fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Dimensions Unit : mm (inch) Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
Protocol TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
15 users at unicast mode
Ø6Ø565..00 (2(.256."5) 6") Edge Storage micro SD/SDHC/SDXC
Motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Ø24Ø2.40.0 ((00.9.49") 4") 42.442.(41(1..6677") ") Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : M icrosoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
Web Viewer Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)
* Mac OS X only
Central Management Software Smart Viewer, SSM
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
Input Voltage / Current PoE (IEEE802.3af), 12V DC
121211..11(4(.747".)77") Power Consumption PoE : Max. 7.5W, 12V DC : Max. 6.5W
Mechanical
Color / Material Head : Black / Plastic, Body : Ivory / Plastic
Demensions (WxHxD) Head : Ø24.0 x 42.4mm (Ø0.94" x 1.67"),
Weight Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1")
305g (0.67 lb)
767.60.0 ((22.9.99") 9") 2288..0 (01.(1"1).1") * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card
detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies
according to operational conditions. No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 24
