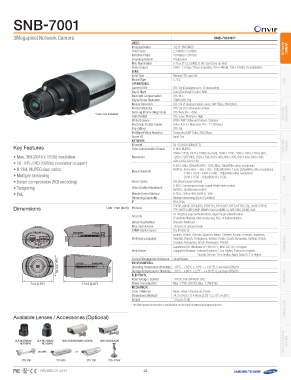

3Megapixel Network Camera SNB-7001N/P
Video 1/2.8" 3M CMOS NETWORK
Imaging Device 2,144(H) x 1,588(V) Camera
Total Pixels 2,096(H) x 1,561(V)
Effective Pixels Progressive NVR
Scanning System 0.4Lux (F1.2, 50IRE), 0.007Lux (Sens-up 60x)
* Lens not included Min. Illumination CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation NETWORK
Video Output PERIPHERAL
Lens Manual / DC auto iris
Key Features Lens Type C / CS Analogue
Mount Type Camera
• Max. 3M (2048 x 1536) resolution Operational Off / On (Displayed up to 15 characters)
• 16 : 9 Full HD (1080p) resolution support Camera Title Auto (Electrical) / Color / B/W
• H.264, MJPEG dual codec Day & Night Off / BLC
• Multiple streaming Backlight Compensation SSNR (Off / On)
• Smart compression (ROI encoding) Digital Noise Reduction Off / On (4 programmable zones, 3M 15fps, 2M 20fps)
• Tampering Motion Detection Off / On (12 rectangular zones)
• PoE Privacy Masking Off / Auto (2x ~ 60x)
Sens-up (Frame Integration) Off / Low / Medium / High
Dimensions Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Electronic Shutter Speed Off / On
Flip / Mirror Tampering (3M 15fps, 2M 20fps)
Intelligent Video Analytics Input 1ea
Alarm I/O
Network RJ-45 (10/100BASE-T)
Ethernet H.264, MJPEG
Video Compression Format
Resolution 2048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960,
1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360,
320 x 240, 320 x 180
Max. Framerate H .264 : Max. 20fps@2048 x 1536, Max. 30fps@the other resolutions
MJPEG : 8 00 x 600 ~ 320 x 180 - 20fps@2048 x 1536, 30fps@the other resolutions
DVR
1280 x 1024 ~1920 x 1080 - 15fps@the other resolutions
2048 x 1536 - 10fps@2048 x 1536
Smart Codec Yes (Area based method)
Video Quality Adjustment H.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method
Streaming Capability H.264 : CBR or VBR, MJPEG : VBR
IP Multiple streaming (Up to 5 profiles)
IPv4, IPv6
Unit : mm (inch) Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE LENS
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
ONVIF Conformance 10 users at unicast mode
Yes (Profile S)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, PERIPHERAL
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher,
Google Chrome 15 or higher, Apple Safari 5.1 or higher
5544..55 ((22..1155"")) Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH MONITOR
Electrical
Input Voltage / Current 12V DC, PoE (IEEE802.3af)
7744..33 ((22..9933"")) 111144..44 ((44..5500"")) Power Consumption Max. 3.7W (12V DC), Max. 4.3W (PoE)
Mechanical
Color / Material Black, Silver / Aluminium, Plastic
Dimensions (WxHxD) 74.3 x 54.5 x 114.4mm (2.93" x 2.15" x 4.50")
Weight 170g (0.42 lb) CONTROLLER
