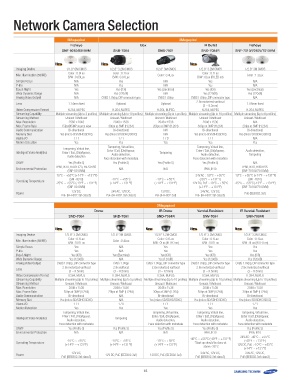

Page 18 - Catalog Samsung 2014
P. 18
work Camera Selection

5Megapixel 3Megapixel
Fisheye
Box IR Bullet Fisheye
SNF-8010/8010VM SNF-7010/7010V/7010VM
SNB-7004 SNB-7001 SNO-7084R

New New New

Imaging Device 1/1.8" 6M CMOS 1/2.8" 3.2M CMOS 1/2.8" 3M CMOS 1/2.8" 3.2M CMOS 1/2.8" 3M CMOS
Min. Illumination (50 IRE)
Simple Focus Color : 0.9Lux Color : 0.1Lux Color : 0.4Lux Color : 0.1Lux Color : 1.3Lux
P-Iris B/W : 0.09Lux B/W : 0.01Lux B/W : 0Lux (IR LED on)
Day & Night
Wide Dynamic Range N/A Yes N/A Yes N/A
Analog Video Output
Lens N/A Yes N/A Yes N/A
Video Compression Format
Streaming Capability Yes Yes (ICR) Yes (Electrical) Yes (ICR) Yes (Electrical)
Streaming Method
Max. Resolution N/A Yes (120dB) N/A Yes (120dB) Yes (120dB)
Max. Frame Rate
Audio Communication N/A CVBS 1.0Vpp, DIP connector type CVBS 1.0Vpp CVBS 1.0Vpp, DIP connector type N/A
Memory Slot
Alarm I/O 1.14mm fixed Optional Optional 2.8x motorized varifocal 1.05mm fixed
Motion Detection (3 ~ 8.5mm)

Intelligent Video Analytics H.264, MJPEG H.264, MJPEG H.264, MJPEG H.264, MJPEG H.264, MJPEG

ONVIF Multiple streaming (Up to 3 profiles) Multiple streaming (Up to 10 profiles) Multiple streaming (Up to 5 profiles) Multiple streaming (Up to 10 profiles) Multiple streaming (Up to 6 profiles)
Environmental Protection
Unicast / Multicast Unicast / Multicast Unicast / Multicast Unicast / Multicast Unicast / Multicast
Operating Temperature
2560 x 2048 2048 x 1536 2048 x 1536 2048 x 1536 N/A
Power
15fps@5MP source view 30fps at 3MP (H.264) 20fps at 3MP (H.264) 30fps at 3MP (H.264) 20fps at 3MP (H.264)

Bi-directional Bi-directional N/A Bi-directional Bi-directional

Yes (micro SD/SDHC/SDXC) Yes (micro SD/SDHC/SDXC) N/A Yes (micro SD/SDHC/SDXC) Yes (micro SD/SDHC/SDXC)

1 / 1 1 / 1 1 / 0 1 / 1 N/A

Yes Yes Yes Yes Yes

Tampering, Virtual line, Tampering, Virtual line, Tampering Tampering, Virtual line, Audio detection,
Enter / Exit, (Dis)Appear, Enter / Exit, (Dis)Appear, Enter / Exit, (Dis)Appear, Tampering

Audio detection Audio detection, Audio detection,
Face detection with metadata Face detection with metadata

Yes (Profile S) Yes (Profile S) Yes (Profile S) Yes (Profile S) N/A
N/A N/A IP66, IK10
IP66, IK10, EN-61373, EN-50155 IP66, IK10, EN50155
(SNF-8010VM) (SNF-7010V/7010VM)

-10°C ~ +55°C (+14°F ~ +131°F) -10°C ~ +55°C -10°C ~ +55°C 24V AC : -50°C ~ +55°C -10°C ~ +55°C (+14°F ~ +131°F)
(SNF-8010) (+14°F ~ +131°F) (+14°F ~ +131°F) (-58°F ~ +131°F) (SNF-7010)

-25°C ~ +55°C (-13°F ~ +131°F) 12V DC, PoE : -10°C ~ +55°C -25°C ~ +55°C (-13°F ~ +131°F)
(SNF-8010VM) (+14°F ~ +131°F) (SNF-7010V/7010VM)

12V DC, 24V AC, 12V DC, 12V DC, 24V AC, 12V DC, PoE (IEEE802.3af)
PoE (IEEE802.3af class3) PoE (IEEE802.3af class3) PoE (IEEE802.3af) PoE (IEEE802.3af class3)

Dome 3Megapixel Vandal-Resistant IR Vandal-Resistant
IR Dome SNV-7084 SNV-7084R
SND-7084 SND-7061
SND-7084R

New New New New

Imaging Device 1/2.8" 3.2M CMOS 1/2.8" 3M CMOS 1/2.8" 3.2M CMOS 1/2.8" 3.2M CMOS 1/2.8" 3.2M CMOS

Min. Illumination (50 IRE) Color : 0.1Lux Color : 0.4Lux Color : 0.1Lux Color : 0.1Lux Color : 0.1Lux
B/W : 0.01Lux B/W : 0Lux (IR LED on) B/W : 0.01Lux B/W : 0Lux (IR LED on)
Simple Focus
P-Iris Yes N/A Yes Yes Yes
Day & Night
Wide Dynamic Range Yes N/A Yes Yes Yes
Analog Video Output
Yes (ICR) Yes (Electrical) Yes (ICR) Yes (ICR) Yes (ICR)
Lens Yes (120dB) N/A Yes (120dB) Yes (120dB) Yes (120dB)

Video Compression Format CVBS 1.0Vpp, DIP connector type CVBS 1.0Vpp CVBS 1.0Vpp, DIP connector type CVBS 1.0Vpp, DIP connector type CVBS 1.0Vpp, DIP connector type
Streaming Capability
Streaming Method 2.8x motorized varifocal 2.8x varifocal 2.8x motorized varifocal 2.8x motorized varifocal 2.8x motorized varifocal
Max. Resolution (3 ~ 8.5mm) (3 ~ 8.5mm) (3 ~ 8.5mm) (3 ~ 8.5mm) (3 ~ 8.5mm)
Max. Frame Rate
Audio Communication H.264, MJPEG H.264, MJPEG H.264, MJPEG H.264, MJPEG H.264, MJPEG
Memory Slot
Alarm I/O Multiple streaming (Up to 10 profiles) Multiple streaming (Up to 5 profiles) Multiple streaming (Up to 10 profiles) Multiple streaming (Up to 10 profiles) Multiple streaming (Up to 10 profiles)
Motion Detection
Unicast / Multicast Unicast / Multicast Unicast / Multicast Unicast / Multicast Unicast / Multicast
Intelligent Video Analytics 2048 x 1536 2048 x 1536 2048 x 1536 2048 x 1536 2048 x 1536

ONVIF 30fps at 3MP (H.264) 20fps at 3MP (H.264) 30fps at 3MP (H.264) 30fps at 3MP (H.264) 30fps at 3MP (H.264)
Environmental Protection
Bi-directional N/A Bi-directional Bi-directional Bi-directional
Operating Temperature
Yes (micro SD/SDHC/SDXC) N/A Yes (micro SD/SDHC/SDXC) Yes (micro SD/SDHC/SDXC) Yes (micro SD/SDHC/SDXC)
Power
1/1 1/0 1/1 1/1 1/1

Yes Yes Yes Yes Yes

Tampering, Virtual line, Tampering Tampering, Virtual line, Tampering, Virtual line, Tampering, Virtual line,
Enter / Exit, (Dis)Appear, Enter / Exit, (Dis)Appear, Enter / Exit, (Dis)Appear, Enter / Exit, (Dis)Appear,

Audio detection, Audio detection, Audio detection, Audio detection,
Face detection with metadata Face detection with metadata Face detection with metadata Face detection with metadata

Yes (Profile S) Yes (Profile S) Yes (Profile S) Yes (Profile S) Yes (Profile S)

N/A N/A N/A IP66, IK10 IP66, IK10

-10°C ~ +55°C -10°C ~ +55°C -10°C ~ +55°C -40°C ~ +55°C (-40°F ~ +131°F) 24V AC : -40°C ~ +55°C
(+14°F ~ +131°F) (+14°F ~ +131°F) (+14°F ~ +131°F) *Start up should be done at (-40°F ~ +131°F)
above -35°C
12V DC, PoE : -10°C ~ +55°C
(+14°F ~ +131°F)

12V DC, 12V DC, PoE (IEEE802.3af) 12V DC, PoE (IEEE802.3af) 24V AC, 12V DC, 24V AC, 12V DC,
PoE (IEEE802.3af class3) PoE (IEEE802.3af class3) PoE (IEEE802.3af class3)

18
