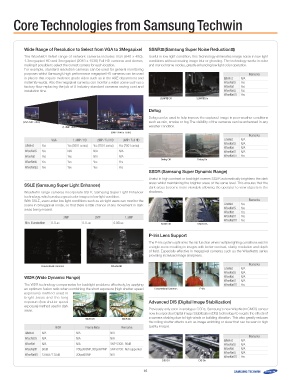

Page 16 - Catalog Samsung 2014
P. 16
e Technologies from Samsung Techwin
Wide Range of Resolution to Select from VGA to 3Megapixel SSNRIII (Samsung Super Noise ReductionIII)
The WiseNet/LiteNet range of network cameras includes VGA (640 x 480), Useful in low light condition, this technology eliminates image noise in low light
1.3megapixel HD and 3megapixel (2048 x 1536) Full HD cameras and domes, conditions without creating image blur or ghosting. The technology works in color
making it possible to select the correct camera for each location. and monochrome modes, greatly enhancing low light color operation.
For example, standard resolution cameras can be used for general monitoring
purposes whilst Samsung’s high performance megapixel HD cameras can be used Remarks
in places that require evidence grade video such as in the A&E department and LiteNet N/A
maternity wards. Also the megapixel cameras can monitor a wider scene such as a WiseNetS Yes
factory floor replacing the job of 5 industry standard cameras saving cost and WiseNet Yes
installation time. WiseNetII Yes
WiseNetIII Yes
SSNRIII Off SSNRIII On
(VGA 640 x 480) Defog
(1.3MP 1280 x 1024) Defog can be used to help improve the captured image in poor weather conditions
such as rain, smoke or fog The visibility of the cameras can be enhanced in any
weather condition.
(3MP 2048 x 1536) Remarks
LiteNet N/A
VGA 1.3MP / HD 2MP / Full HD 3MP / Full HD WiseNetS N/A
Yes (5001 series) Yes (7001 series) Yes (7001 series) WiseNet N/A
LiteNet Yes N/A N/A N/A Defog Off Defog On WiseNetII N/A
WiseNetS Yes Yes N/A N/A WiseNetIII Yes
WiseNet Yes Yes Yes Yes
WiseNetII Yes Yes Yes Yes SSDR (Samsung Super Dynamic Range)
WiseNetIII Yes
Useful in high contrast or backlight scenes SSDR automatically brightens the dark
SSLE (Samsung Super Light Enhancer) areas whilst maintaining the brighter areas at the same level. This ensures that the
dark areas become more viewable allowing the operator to view objects in the
WiseNetIII range cameras incorporate SSLE, Samsung Super Light Enhancer shadows.
technology, which produce great color images in low light condition.
With SSLE, even under low light conditions such as at night users can monitor the Remarks
scene in 3megapixel mode, so that there is little chance of any movement in dark LiteNet Yes
areas being missed. WiseNetS Yes
WiseNet Yes
Min. Illumination 3MP 2MP 1.3MP SSDR Off SSDR On WiseNetII Yes
0.1Lux 0.1Lux 0.05Lux WiseNetIII Yes
P-Iris Lens Support
The P-Iris system optimizes the iris function when multiple lighting conditions exist in
a single scene resulting in images with better contrast, clarity, resolution and depth
of field. Especially effective in megapixel cameras such as the WiseNetIII series
providing increased image sharpness.
Conventional Cameras WiseNetIII Remarks
LiteNet N/A
WDR (Wide Dynamic Range) Conventional Cameras WiseNetS N/A
WiseNet N/A
The WDR technology compensates for backlight problems effectively, by applying WiseNetII N/A
an optimum fusion ratio when combining the short exposure (high shutter speed WiseNetIII Yes
exposure) method used in
bright areas and the long P-Iris
exposure (low shutter speed
exposure) method used in dark Advanced DIS (Digital Image Stabilization)
areas.
Previously only seen in analogue CCDs, Samsung's new WiseNetIII CMOS sensor
WDR Off WDR On now incorporates Digital Image Stabilization (DIS) technology to negate the effects of
a camera shaking due to high winds or building vibration. This also greatly reduces
WDR Frame Rate Remarks the rolling shutter effects such as image wobbling or skew that can be seen in high
N/A N/A N/A quality images.
N/A N/A N/A
LiteNet N/A N/A SNP-5300 : 90dB Remarks
WiseNetS 96dB 20fps@3MP, 30fps@2MP SNP-6200 : Not supported LiteNet N/A
WiseNet 120dB / 130dB 20fps@3MP N/A WiseNetS N/A
WiseNetII WiseNet N/A
WiseNetIII WiseNetII N/A
WiseNetIII Yes
DIS Off DIS On
16
