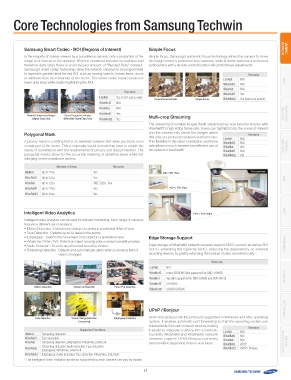

Page 17 - Catalog Samsung 2014
P. 17
e Technologies from Samsung Techwin
Samsung Smart Codec - ROI (Regions of Interest) Simple Focus NETWORK
Camera
In the majority of scenes viewed by a surveillance camera, only a proportion of the Simple focus, Samsung’s automatic focus technology allows the camera to move
image is of interest to the operator. With the continued increase in resolution and the image sensor's position in box cameras, while in dome cameras a motorized
therefore data sizes there is an increased amount of “Wasted Data” created. varifocal lens with a remote control function will control these adjustments.
Samsung’s smart codec technology allow the network cameras to be programmed
to capture in greater detail the real ROI, such as moving objects, human faces, doors LiteNet Remarks NVR
or windows than the remainder of the scene. This smart codec feature produces N/A
lower data sizes while clearly highlighting the ROI. WiseNetS N/A
N/A
Low Quality LiteNet Remarks Conventional Cameras Simple Focus WiseNet Yes
WiseNetS Yes (7001 series only) Yes (Varies by model)
High Quality WiseNet N/A WiseNetII
Smart Compressed Image WiseNetII N/A WiseNetIII
(Effectively Saved Data Size) WiseNetIII Yes
Region of interest Yes Multi-crop Streaming NETWORK
PERIPHERAL
Normal Compressed Image
(Higher Data Size)
The streaming of multiple images (Multi-streaming) has now become smarter with
WiseNetIII's high 60fps frame rate. Users can highlight/crop the scene of interest
and the camera only sends the images within
Polygonal Mask that area at a preferred resolution and frame rate. LiteNet Remarks Analogue
This flexibility in the video's resolution and frame WiseNetS N/A Camera
A privacy mask is a setting that is on selected cameras that allow you block out a rate allows a much smarter and efficient use of WiseNet N/A
certain part of the scene. This is especially useful in areas that have to couple the the network's bandwidth. WiseNetII N/A
needs of surveillance with the requirements of privacy and data protection. The N/A
polygonal masks allow for the accurate masking of sensitive areas while not
infringing on the surveillance sectors. WiseNetIII Yes
LiteNet Number of Areas Remarks 640 x 480 15fps DVR
WiseNetS Up to 12ea Yes 1024 x 768 15fps
WiseNet Up to 32ea Yes
WiseNetII Up to 12ea SNZ-5200 : 8ea
WiseNetIII Up to 17ea Yes
Up to 32ea Yes
Intelligent Video Analytics 1920 x 1080 30fps LENS
Intelligent video analytics can be used for efficient monitoring. Each range of cameras Edge Storage Support PERIPHERAL
features a different set of analytics.
• Motion Detection : Detects any change occurring in predefined fields of view Edge storage of WiseNetIII network cameras support SDXC memory as well as SD/
• Face Detection : Detects up to 32 faces in the scene. SDHC, extending the capacity SDXC, reducing the dependency on external
• (Dis)Appear : Detects the movement of an object in a predefined area recording devices by greatly extending the number of days recorded locally.
• Virtual Line / Enter / Exit : Detects an object crossing a line or areas in predefined areas.
• Audio Detection : Detects any abnormal sound by volume.
• Tampering Detection : Detects and automatically alerts when a cameras field of
view is changed.
LiteNet Remarks MONITOR
WiseNetS N/A
Motion Detection Virtual Line Detection Enter / Exit Detection WiseNet micro SD/SDHC (Not supported for SNO-1080R)
WiseNetII Yes (Not supported for SNO-5080R and SNV-5010)
WiseNetIII SD/SDHC
SD/SDHC/SDXC
UPnP / Bonjour CONTROLLER
Face Detection Scene Change Detection (Dis)Appear Detection UPnP and Bonjour are the protocols supported in Windows and Mac operating
(Tampering)
system. It enables automatic port forwarding so that the operating system can
Supported Functions automatically find each network camera, making LiteNet Remarks Access Control
it easier to integrate a device into a network. WiseNetS N/A System
LiteNet Tampering detection Currently WiseNetII and WiseNetIII network WiseNet N/A
cameras support UPnP/Bonjour but every WiseNetII N/A
WiseNetS Face detection camera will be supporting these in near future. WiseNetIII UPnP
UPnP / Bonjour
WiseNet Tampering detection, (Dis)Appear, Virtual line, Enter/Exit
WiseNetII Tampering detection, Audio detection, Face detection
(Dis)Appear, Virtual line, Enter/Exit
WiseNetIII (Dis)Appear, Audio detection, Face detection, Virtual line, Enter/Exit
* The Intelligent Video Analytics functions supported by each camera can vary by model.
