Page 43 - Catalog Samsung 2014
P. 43
-3082

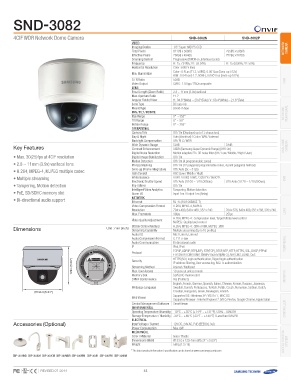

4CIF WDR Network Dome Camera SND-3082N SND-3082P
Key Features Video 1/3" Super HAD PS CCD NETWORK
• Max. 30(25)fps at 4CIF resolution Imaging Device Camera
• 2.8 ~ 11mm (3.9x) varifocal lens Total Pixels 811(H) x 508(V) 795(H) x 596(V)
• H.264, MPEG-4, MJPEG multiple codec Effective Pixels
• Multiple streaming Scanning System 768(H) x 494(V) 752(H) x 582(V)
• Tampering, Motion detection Frequency
• PoE, SD/SDHC memory slot Horizontal Resolution Progressive (If WDR on, Interlaced scan)
• Bi-directional audio support
Dimensions Min. Illumination H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Ø133.Ø0Ø1(13533.32..040"()(55..2244"")) Color : 600TV lines
Accessories (Optional) Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x)
B/W : 0.04Lux (F1.2, 50IRE), 0.0001Lux (Sens-up 512x)
S / N Ratio 52dB NVR
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 11mm (3.9x) varifocal NETWORK
Max. Aperture Ratio F1.2 PERIPHERAL
Angular Field of View H : 94.6°(Wide) ~ 28.8°(Tele) / V : 68.4°(Wide) ~ 21.6°(Tele)
Lens Type DC auto iris
Mount Type Board-in type
Pan / Tilt / Rotate
Pan Range 0° ~ 355°
Tilt Range 0° ~ 90°
Rotate Range 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 15 characters)
Day & Night
Backlight Compensation Auto (Electrical) / Color / B/W / External
Wide Dynamic Range
Contrast Enhancement Off / BLC / WDR Analogue
Digital Noise Reduction Camera
Digital Image Stabilization 52dB 54dB
Motion Detection
Privacy Masking SSDR (Samsung Super Dynamic Range) (Off / On)
Sens-up (Frame Integration)
Gain Control Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User)
White Balance
Electronic Shutter Speed Off / On
Flip / Mirror
Intelligent Video Analytics Off / On (4 programmable zones)
Alarm I/O
Network Off / On (12 polygonal programmable zones, 4 point polygonal method)
Ethernet
Video Compression Format Off / Auto (2x ~ 512x)
Resolution
Max. Framerate AGC (Low / Middle / High)
ATW1 / ATW2 / AWC / 3200°K / 5600°K DVR
Off / Auto (1/100 ~ 1/10,000sec) Off / Auto (1/120 ~ 1/10,000sec)
Off / On
Tampering, Motion detection
Input 1ea / Output 1ea (Relay)
RJ-45 (10/100BASE-T) 704 x 576, 640 x 480, 352 x 288, 320 x 240 LENS
H.264, MPEG-4, MJPEG 25fps
704 x 480, 640 x 480, 352 x 240
30fps
Unit : mm (inch) Video Quality Adjustment H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method PERIPHERAL
Streaming Capability H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Audio I/O Multiple streaming (Up to 10 profiles)
Audio Compression Format Mic / Line in, Line out
Audio Communication G.711 u-law
IP Bi-directional audio
IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
129.4 (5.09") Security HTTPS(SSL) login authentication, Digest login authentication MONITOR
112299..44 ((55..0099"")) IP address filtering, User access log, 802.1x authentication
Streaming Method
Max. User Access Unicast / Multicast
Memory Slot 10 users at unicast mode
ONVIF Conformance SD/SDHC memory slot
Yes (Profile S)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
CONTROLLER
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / 20% ~ 80% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption Max. 6W Access Control
System
Mechanical
Color / Material Ivory / Plastic
Dimensions (WxH) Ø133.0 x 129.4mm (Ø5.24" x 5.09")
Weight 580g (1.27 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM
REVISED 07-2014 43
