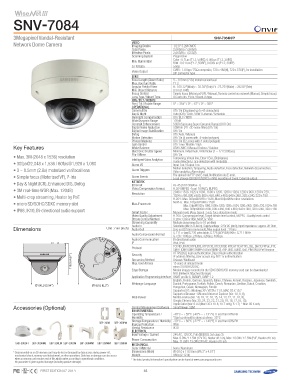

Page 48 - Catalog Samsung 2014
P. 48
-7084
3Megapixel Vandal-Resistant SNV-7084N/P
Network Dome Camera Video 1/2.8" 3.2M CMOS
Imaging Device
Total Pixels 2,065(H) x 1,565(V)
Effective Pixels 2,065(H) x 1,553(V)
Scanning System Progressive
Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE)
Min. Illumination B/W : 0.01Lux (F1.2, 50IRE), 0.006Lux (F1.2, 30IRE)
S / N Ratio 50dB
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Video Output DIP connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type / Mount Type DC auto iris, P-Iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction OSSffN/ROInII (2D+3D noise filter) (Off / On)
Digital Image Stabilization
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones with 4-sided polygon)
Privacy Masking Off / On (32 zones with 4-sided polygon)
Gain Control Off / Low / Middle / High
Key Features White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Flip / Mirror Off / On
• Max. 3M (2048 x 1536) resolution Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080 Alarm I/O Audio detection, Face detection with metadata
Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detection, Network disconnection,
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Alarm Triggers Video analytics, Alarm input
• Simple focus (Motorized VF), P-Iris Alarm Events File upload via FTP and E-mail, Notification via E-mail,
Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Network
• Day & Night (ICR), Enhanced DIS, Defog Ethernet RJ-45 (10/100BASE-T)
• 3M real-time WDR (Max. 120dB) Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
• Multi-crop streaming, Heater by PoE Resolution 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions
MJPEG : Max. 10fps@2048 x 1536
• micro SD/SDHC/SDXC memory slot Max. Framerate Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
• IP66, IK10, Bi-directional audio support Smart Codec Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Dimensions Unit : mm (inch) Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
11118.8.55 ((44..667"7)") Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Webpage Language Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian,
ØØ110000..00((33.9.49"4) ") ØØ116600..00(6(6.3."3) ") Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8),
Web Viewer Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Accessories (Optional) Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Humidity *Start up should be done at above -35°C
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
SBP-300B SBP-300PM Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class 3)
Max. 9.0W / 11.5W (12V DC, Heater off / on), Max. 10.0W / 12.5W (PoE, Heater off / on)
SHD-3000F1 SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Power Consumption Max. 11.0W / 13.0W (24V AC, Heater off / on)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3" x 4.67")
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Weight 960g (2.12 lb)
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur
when a memory card reaches end of life, which varies according to operational conditions.
No guarantee is given against damage (including passive damage). * The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 48
