P. 46
-6011R

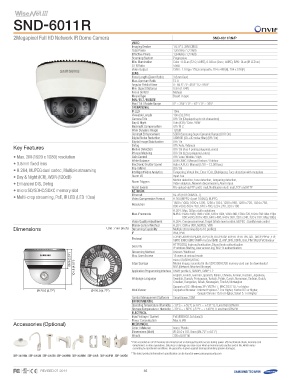

2Megapixel Full HD Network IR Dome Camera SND-6011RN/P
Key Features Video 1/2.8" 2.38M CMOS
Imaging Device 1,952(H) x 1,236(V)
• Max. 2M (1920 x 1080) resolution Total Pixels 1,944(H) x 1,224(V)
• 3.8mm fixed lens Effective Pixels Progressive
• H.264, MJPEG dual codec, Multiple streaming Scanning System Color : 0.3Lux (F2.0, 50IRE), 0.03Lux (2sec, 50IRE), B/W : 0Lux (IR LED on)
• Day & Night (ICR), WDR (120dB) Min. Illumination 50dB
• Enhanced DIS, Defog S / N Ratio CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P)
• micro SD/SDHC/SDXC memory slot Video Output
• Multi-crop streaming, PoE, IR LED (LED 10ea) Lens 3.8mm fixed
Focal Length (Zoom Ratio) F2.0
Max. Aperture Ratio H : 84.5° / V : 45.8° / D : 98.8°
Angular Field of View 0.5m (1.64ft)
Min. Object Distance Manual
Focus Control Board-in type
Mount Type
Pan / Tilt / Rotate 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Pan / Tilt / Rotate Range
Operational 10ea
IR LED 10m (32.81ft)
Viewable Length Off / On (Displayed up to 45 characters)
Camera Title Auto (ICR) / Color / B/W
Day & Night Off / BLC
Backlight Compensation 120dB
Wide Dynamic Range SSDR (Samsung Super Dynamic Range) (Off / On)
Contrast Enhancement SSNRIII (2D+3D noise filter) (Off / On)
Digital Noise Reduction Off / On
Digital Image Stabilization Off / Auto / Manual
Defog Off / On (4ea 4 points polygonal zones)
Motion Detection Off / On (32ea polygonal zones)
Privacy Masking Off / Low / Middle / High
Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Electronic Shutter Speed Off / On
Flip / Mirror Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection with metadata
Intelligent Video Analytics Input 1ea
Alarm I/O Motion detection, Face detection, Tampering detection,
Alarm Triggers Video analytics, Network disconnection, Alarm input
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 30fps at all resolutions
MJPEG : 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Dimensions Unit : mm (inch) Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
5 56.6.99 ((22..224")4") Streaming Capability Multiple streaming (Up to 10 profiles)
10101.1.88 ((44..1"0)1") IP IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Security SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Streaming Method
Max. User Access HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
15 users at unicast mode
Edge Storage micro SD/SDHC/SDXC
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish, Norwegian
ØØ112200..00(4(4.7.27")2") Ø12Ø012.00.0(4(4..7722"") ) Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9.0 or Higher,
Google Chrome 15.0 or Higher, Safari 5.1 or Higher
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Electrical
Input Voltage / Current PoE (IEEE802.3af class3)
Power Consumption
Accessories (Optional) Mechanical Max. 6.6W
Color / Material Ivory / Plastic
Dimensions (WxH)
Weight Ø120.0 x 101.8mm (Ø4.72" x 4.01")
395g (0.87 lb)
SBP-301HM4 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card
detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies
according to operational conditions. No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 46
