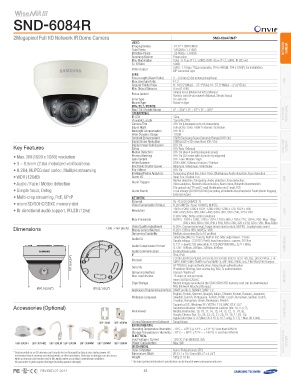

Page 45 - Catalog Samsung 2014
P. 45
-6084R
2Megapixel Full HD Network IR Dome Camera SND-6084RN/P
Video 1/2.8" 2.38M CMOS NETWORK
Imaging Device 1,952(H) x 1,116(V) Camera
Total Pixels 1,944(H) x 1,104(V)
Effective Pixels Progressive NVR
Scanning System Color : 0.1Lux (F1.2, 50IRE), B/W : 0Lux (F1.2, 50IRE, IR LED on)
Min. Illumination 50dB NETWORK
S / N Ratio CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation PERIPHERAL
Video Output DIP connector type
Key Features Lens Analogue
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal Camera
• Max. 2M (1920 x 1080) resolution Max. Aperture Ratio F1.2
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele) DVR
• H.264, MJPEG dual codec, Multiple streaming Min. Object Distance 0.5m (1.64ft)
• WDR (120dB) Focus Control Simple focus (Motorized V/F) / Manual LENS
• Audio / Face / Motion detection Lens Type Remote control via network (Manual, Simple focus)
• Simple focus, Defog Mount Type DC auto iris
• Multi-crop streaming, PoE, UPnP Pan / Tilt / Rotate Board-in type
• micro SD/SDHC/SDXC memory slot Pan / Tilt / Rotate Range
• Bi-directional audio support, IR LED (12ea) Operational 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
IR LED
Viewable Length 12ea
Camera Title 15m (49.21ft)
Day & Night Off / On (Displayed up to 45 characters)
Backlight Compensation Auto (ICR) / Color / B/W / External / Schedule
Wide Dynamic Range Off / BLC
Contrast Enhancement 120dB
Digital Noise Reduction SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Image Stabilization SSNRIII (2D+3D noise filter) (Off / On)
Defog Off / On
Motion Detection Off / Auto / Manual
Privacy Masking Off / On (4ea 4 points polygonal zones)
Gain Control Off / On (32 zones with 4 points of polygonal)
White Balance Off / Low / Middle / High
Electronic Shutter Speed ATW / AWC / Manual / Indoor / Outdoor
Flip / Mirror Minimum / Maximum / Anti flicker
Intelligent Video Analytics Off / On
Alarm I/O Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm Triggers Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detection,
Alarm Events Video analytics, Network disconnection, Alarm input, Network disconnection
File upload via FTP and E-mail, Notification via E-mail, TCP,
Network Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
Ethernet External output
Video Compression Format
Resolution RJ-45 (10/100BASE-T)
H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Dimensions Unit : mm (inch) Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Ø1Ø31322..11 ((55.2."2)") Streaming Capability Multiple streaming (Up to 10 profiles)
ØØ9977..00(3(3.8.28")2") Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
Audio I/O Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm PERIPHERAL
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
10170.7.66((44..224"4)") TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast MONITOR
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
CONTROLLER
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SBP-300B SBP-300PM Central Management Software SmartViewer
Environmental
SHD-3000F1 SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Access Control
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Electrical System
when a memory card reaches end of life, which varies according to operational conditions. Input Voltage / Current 12V DC, PoE (IEEE802.3af)
No guarantee is given against damage (including passive damage). Power Consumption Max. 9W
Mechanical
Color / Material Ivory / Polycarbonate (PC)
Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24")
Weight 525g (1.16 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 45
