P. 50
-6013

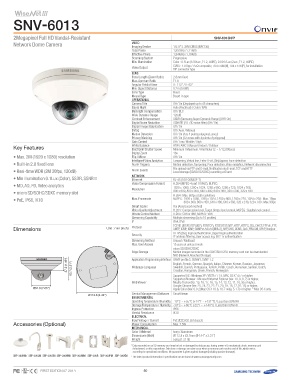

2Megapixel Full HD Vandal-Resistant SNV-6013N/P
Network Dome Camera
Video 1/2.8" 2.38M CMOS (IMX136)
Imaging Device 1,952(H) x 1,116(V)
Total Pixels 1,944(H) x 1,104(V)
Effective Pixels Progressive
Scanning System Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE)
Min. Illumination
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
DIP connector type
Key Features Lens 2.8mm fixed
Focal Length (Zoom Ratio) F1.8
• Max. 2M (1920 x 1080) resolution Max. Aperture Ratio H : 112° / V : 62°
• Built-in 2.8 fixed lens Angular Field of View 0.2m (0.66ft)
• Real-time WDR (2M 30fps, 120dB) Min. Object Distance Fixed
• Min illumination 0.1Lux (Color), SSDR, SSNRIII Lens Type Board-in type
• MD, AD, FD, Video analytics Mount Type
• micro SD/SDHC/SDXC memory slot Operational Off / On (Displayed up to 45 characters)
• PoE, IP66, IK10 Camera Title Auto (Electrical) / Color / B/W
Day & Night Off / BLC
Backlight Compensation 120dB
Wide Dynamic Range SSDR (Samsung Super Dynamic Range) (Off / On)
Contrast Enhancement SSNRIII (2D+3D noise filter) (Off / On)
Digital Noise Reduction Off / On
Digital Image Stabilization Off / Auto / Manual
Defog Off / On (4ea 4 points polygonal zones)
Motion Detection Off / On (32 zones with 4 points of polygonal)
Privacy Masking Off / Low / Middle / High
Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Electronic Shutter Speed 16x
Digital Zoom Off / On
Flip / Mirror Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection
Intelligent Video Analytics Motion detection, Tampering, Face detection, Video analytics, Network disconnection
Alarm Triggers
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
Local storage (SD/SDHC/SDXC) recording at Event
Network RJ-45 (10/100BASE-T)
Ethernet H.264 (MPEG-4 part 10/AVC), MJPEG
Video Compression Format
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Smart Codec Yes (Area based method)
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
Dimensions Unit : mm (inch) Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage micro SD/SDHC/SDXC
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
373.7.22( (11..446"6)") Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
636.3.77((22..551")1")
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 or higher
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7) or higher,
Ø5Ø25.20.0((22..0055")") Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9) or higher,
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15) or higher,
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) or higher * Mac OS X only
ØØ111122..88(4(4.4.44")4") Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance
Electrical IK10
Accessories (Optional) Input Voltage / Current PoE (IEEE802.3af class3)
Power Consumption
Mechanical Max. 7.5W
Color / Material Ivory / Aluminum
Dimensions (WxH)
Weight Ø112.8 x 63.7mm (Ø4.44" x 2.51")
550g (1.21 lb)
SBP-300HM7 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card
detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies
according to operational conditions. No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 50
