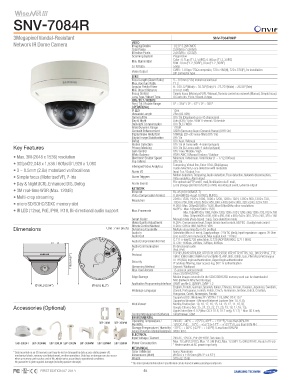

Page 54 - Catalog Samsung 2014
P. 54
-7084R
3Megapixel Vandal-Resistant SNV-7084RN/P
Network IR Dome Camera Video 1/2.8" 3.2M CMOS
Imaging Device
Total Pixels 2,065(H) x 1,565(V)
Effective Pixels 2,065(H) x 1,553(V)
Scanning System Progressive
Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE)
Min. Illumination B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE)
S / N Ratio 50dB
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Video Output DIP connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type / Mount Type DC auto iris, P-Iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
IR LED 12ea
Viewable Length 25m (82.02ft)
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones with 4-sided polygon)
Key Features Privacy Masking Off / On (32 zones with 4-sided polygon)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 3M (2048 x 1536) resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Flip / Mirror Off / On
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080 Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Alarm I/O Audio detection, Face detection with metadata
Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detection, Network disconnection,
• Simple focus (Motorized VF), P-Iris Alarm Triggers Video analytics, Alarm input
• Day & Night (ICR), Enhanced DIS, Defog Alarm Events File upload via FTP and E-mail, Notification via E-mail,
Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Network
• 3M real-time WDR (Max. 120dB) Ethernet RJ-45 (10/100BASE-T)
• Multi-crop streaming Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
• micro SD/SDHC/SDXC memory slot Resolution 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions
MJPEG : M ax. 10fps@2048 x 1536
• IR LED (12ea), PoE, IP66, IK10, Bi-directional audio support Max. Framerate Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Smart Codec Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Dimensions Unit : mm (inch) Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Compression Format G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
11118.8.55 ((44..667"7)") Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
ØØ110000..00((33.9.49"4) ") ØØ116600..00(6(6.3."3) ") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Webpage Language Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian,
Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8),
Web Viewer Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Accessories (Optional) Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / 24V AC : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
SBP-300B SBP-300PM Humidity 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10
Electrical
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class 3)
Max. 10.5W (12V DC), Max. 11.5W (PoE), Max. 12.0W / 15.0W (24V AC, Heater off / on)
SHD-3000F1 SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Power Consumption * Heater works at AC power input only
Mechanical
Color / Material Ivory / Aluminum
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3" x 4.67")
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Weight 975g (2.15 lb)
when a memory card reaches end of life, which varies according to operational conditions.
No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
