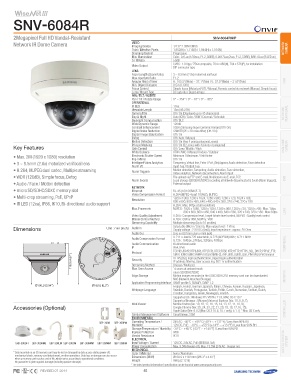

Page 55 - Catalog Samsung 2014
P. 55
-6084R
2Megapixel Full HD Vandal-Resistant SNV-6084RN/P
Network IR Dome Camera Video NETWORK
Imaging Device 1/2.8" 2.38M CMOS Camera
Total / Effective Pixels 1,952(H) x 1,116(V) / 1,944(H) x 1,104(V)
Scanning System Progressive
Min. Illumination Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE), B/W : 0Lux (IR LED on)
S / N Ratio 50dB
CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Video Output DIP connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele) NVR
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens / Mount Type DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
IR LED 12ea
Viewable Length 15m (49.21ft) NETWORK
Camera Title Off / On (Displayed up to 45 characters) PERIPHERAL
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones) Analogue
Privacy Masking Off / On (32 zones with 4 points of polygonal) Camera
Key Features Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
• Max. 2M (1920 x 1080) resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Flip / Mirror Off / On
• H.264, MJPEG dual codec, Multiple streaming Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
• WDR (120dB), Simple focus, Defog Alarm I/O Input 1ea / Output 1ea
• Audio / Face / Motion detection Motion detection, Tampering, Audio detection, Face detection,
• micro SD/SDHC/SDXC memory slot Alarm Triggers Video analytics, Network disconnection, Alarm input
• Multi-crop streaming, PoE, UPnP
• IR LED (12ea), IP66, IK10, Bi-directional audio support Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP, DVR
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
Resolution 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps LENS
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Selectable (Mic in / Line in), Max output level : 1 Vrms
Dimensions Unit : mm (inch) Audio In Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm stereo mini jack)
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Compression Format G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps PERIPHERAL
Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
11118.8.55 ((44..667"7)") Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC MONITOR
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
ØØ110000..00((33.9.49"4) ") ØØ116600..00(6(6.3."3) ") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 CONTROLLER
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / 24V AC : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
SBP-300B SBP-300PM Humidity 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
SHD-3000F1 SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Ingress Protection IP66 Access Control
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Vandal Resistance IK10 System
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Electrical
when a memory card reaches end of life, which varies according to operational conditions. Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af)
No guarantee is given against damage (including passive damage). Power Consumption Max. 9.5W (Heater off), Max. 13.5W (24V AC - Heater on)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3" x 4.67")
Weight 960g (2.12 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 55
