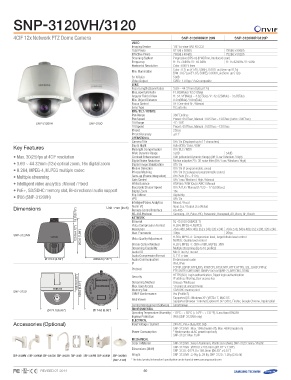

4CIF 12x Network PTZ Dome Camera SNP-3120VHN/3120N SNP-3120VHP/3120P
Video 1/4" Ex-view HAD PS CCD
Imaging Device
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels
Scanning System 768(H) x 494(V) 752(H) x 582(V)
Frequency
Horizontal Resolution Progressive (VPS on) (If WDR on, Interlaced scan)
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines
Min. Illumination Color : 0.7Lux (F1.65, 50IRE), 0.001Lux (Sens-up 512x)
B/W : 0.07Lux (F1.65, 50IRE), 0.0001Lux (Sens-up 512x)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.69 ~ 44.32mm (Optical 12x)
Max. Aperture Ratio F1.65(Wide) / F2.01(Tele)
Angular Field of View H : 54.44˚(Wide) ~ 4.62˚(Tele) / V : 42.32˚(Wide) ~ 3.58˚(Tele)
Min. Object Distance 0.2m(Wide) / 0.8m(Tele)
Focus Control AF / One-shot AF / Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
SNP-3120VH SNP-3120 Pan Range 360˚ Endless
Pan Speed Preset : 650˚/sec, Manual : 0.05˚/sec ~120˚/sec (Turbo : 200˚/sec)
Tilt Range -5˚~185˚
Tilt Speed Preset : 650˚/sec, Manual : 0.05˚/sec ~120˚/sec
Preset 255ea
Preset Accuracy ±0.1˚
Operational
Key Features Camera Title Off / On (Displayed up to 12 characters)
Day & Night Auto (ICR) / Color / B/W
• Max. 30(25)fps at 4CIF resolution Backlight Compensation Off / BLC / WDR
• 3.69 ~ 44.32mm (12x) optical zoom, 16x digital zoom Wide Dynamic Range 52dB 54dB
• H.264, MPEG-4, MJPEG multiple codec Contrast Enhancement XDR (eXtended Dynamic Range) (Off / Low / Medium / High)
• Multiple streaming Digital Noise Reduction Motion adaptive 2D+3D noise filter (Off / Low / Medium / High)
• Intelligent video analytics : Moved / Fixed Digital Image Stabilization Off / On
• PoE+, SD/SDHC memory slot, Bi-directional audio support Motion Detection Off / On (4 programmable zones)
• IP66 (SNP-3120VH) Privacy Masking Off / On (12 polygonal programmable zones)
Sens-up (Frame Integration) Off / Auto (2x ~ 512x)
Dimensions 112200..00 ((44..72"")) 1199..0 ((0.7755")") Unit : mm (inch) Gain Control Off / Low / Medium / High / Manual
22003.3.00((77..9999"")) White Balance ATW (In) / ATW (Out) / AWC / Manual
Electronic Shutter Speed Off / A.FLK / Manual (1/120 ~ 1/10,000sec)
Digital Zoom 16x
Flip / Mirror Digital flip
VPS Off / On
Intelligent Video Analytics Moved / Fixed
Alarm I/O Input 2ea / Output 2ea (Relay)
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, GE, Bosch
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format
Resolution H.264, MPEG-4, MJPEG
Max. Framerate 704 x 480, 640 x 480, 352 x 240, 320 x 240 704 x 576, 640 x 480, 352 x 288, 320 x 240
Video Quality Adjustment
SNP-3120VH 30fps 25fps
H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
ØØ111155..00 ((44..5533"")) ØØ220000..00 ((77..8877"")) Bitrate Control Method H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Mic / Line in, Line out
Audio Compression Format G.711 u-law
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
110088..00 ((44..225"5)") Security HTTPS(SSL) Login authentication, Digest login authentication
116688..00 ((66..661"1)") IP address filtering, User access log
SNP-3120 Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Memory Slot SD/SDHC memory slot
ONVIF Conformance Yes (Profile S)
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0/7.0/8.0, Firefox, Google Chrome, Apple Safari
Central Management Software SmartViewer
Environmental
Ø1Ø71474.0.0((66..885"")) ØØ117744..00((66.8.855")") Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Accessories (Optional) Ingress Protection IP66 (SNP-3120VH only)
Electrical
Input Voltage / Current 24V AC, PoE+ (IEEE802.3at)
Power Consumption SNP-3120VH : Max. 15W (Heater off), Max. 45W (Heater on)
* Heater works at AC power input only
SNP-3120 : Max. 15W
Mechanical SNP-3120VH : Ivory / Aluminum, Plastic sun-shield, SNP-3120 : Ivory / Plastic
Color / Material
Dimensions (WxH) SNP-3120VH : Ø200.0 x 203.0mm (Ø7.87" x 7.99")
SNP-3120 : Ø174.0 x 168.0mm (Ø6.85" x 6.61")
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300PM SBP-300KM SBP-300HM1 Weight SNP-3120VH : 2.4Kg (5.29 Ib), SNP-3120 : 1.2Kg (2.65 Ib)
(SNP-3120) * The latest product information / specification can be found at www.samsungsecurity.com
