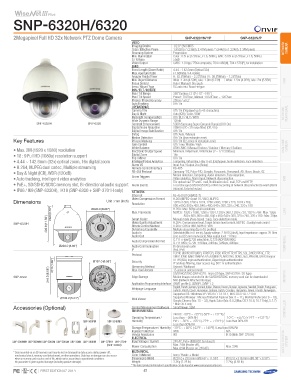

Page 57 - Catalog Samsung 2014
P. 57
-6320H/6320
2Megapixel Full HD 32x Network PTZ Dome Camera SNP-6320HN/HP SNP-6320N/P
Video NETWORK
Imaging Device 1/2.8" 2M CMOS Camera
Total / Effective Pixels 1,952(H) x 1,236(V), 2.41M pixels / 1,944(H) x 1,224(V), 2.38M pixels
Scanning System Progressive
Min. Illumination Color : 0.3Lux (1/30sec, F1.6, 50IRE), B/W : 0.03Lux (1/30sec, F1.6, 50IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Lens
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
Max. Aperture Ratio F1.6(Wide) / F4.4(Tele)
Angular Field of View H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele)
Min. Object Distance Wide : 1.4m (4.59ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft) NVR
Focus Control Auto / Manual / One push
Lens / Mount Type DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt Range 360˚ Endless / 210˚ (-15˚ ~195˚ )
Pan / Tilt Speed Preset : 700˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
Preset / Preset Accuracy 255ea / ±0.2˚
Auto Tracking Off / On
Operational NETWORK
Camera Title Off / On (Displayed up to 45 characters) PERIPHERAL
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range 120dB
SNP-6320H SNP-6320 Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SOSffN/ROInII (2D+3D noise filter) (Off / On)
Digital Image Stabilization
Defog Off / Auto / Manual
Motion Detection Off / On (4ea rectangle zone)
Key Features Privacy Masking Off / On (32 zones of rectangle zone) Analogue
Gain Control Off / Low / Middle / High Camera
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
• Max. 2M (1920 x 1080) resolution Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom 16x
• 16 : 9 Full HD (1080p) resolution support Flip / Mirror Off / On
• 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
• H.264, MJPEG dual codec, Multiple streaming Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE
• Day & Night (ICR), WDR (120dB) Alarm Triggers Motion detection, Tampering, Audio detection, Face detection, DVR
• Auto tracking, Intelligent video analytics Video analytics, Alarm input, Network disconnection
File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
• PoE+, SD/SDHC/SDXC memory slot, Bi-directional audio support Alarm Events Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm
triggers), External output
• IP66 / IK9 (SNP-6320H), IK10 (SNP-6320 + SHP-3701H only) Network
Ethernet RJ-45 (10/100BASE-T)
Unit : mm (inch) Video Compression Format H.264 (MPEG-4 part 10 / AVC), MJPEG
Dimensions Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
2932.936.6( (111.1.565")6") Ø2Ø22020.0.0 ((88.6.66")6") H.264 : Max. 60fps at all resolutions
20.0 (20.0.0 (70.979"")) Max. Framerate MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps LENS
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Smart Codec Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
SNP-6320H Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, PERIPHERAL
Audio Compression Format G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Ø2Ø22200..00(8(.866."6) 6") Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
218.0 (8.58") Ø15Ø125.20.0 ((55.9.89") 8") Security HTTPS(SSL) login authentication, Digest login authentication
218.0 (8.58") IP address filtering, User access log, 802.1x authentication
27.6 ( 217..60(19.0")9") Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
SD/SDHC/SDXC (SNP-6320 : micro SD type, SNP-6320H : SD type) MONITOR
SNP-6320 Edge Storage Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
Webpage Language Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 / 10.8
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
Ø13Ø313.32.2 ((55.2.42")4") Web Viewer Google Chrome (Ver. 15 ~ 32), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 Only), 5.1.7)
Accessories (Optional) * Mac OS X only CONTROLLER
Central Management Software SmartViewer, SSM
Environmental
24V AC : -50°C ~ +55°C (-58°F ~ +131°F) /
Operating Temperature / Less than ~ 90% RH -10°C ~ +55°C (+14°F ~ +131°F) /
Humidity PoE+ : -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
SBP-300PM SBP-301HM3 Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66 N/A
Vandal Resistance IK9 IK10 (With SHP-3701H) Access Control
Electrical System
Input Voltage / Current 24V AC, PoE+ (IEEE802.3at class3)
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300KM SHP-3701H SHP-3701F Power Consumption Max. 24W (Heater off),
(SNP-6320) Max. 65W (Heater on, 24V AC)
Max. 20W
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Mechanical Ivory / Plastic + Metal Ø152.0 x 218.0mm (Ø5.98" x 8.58")
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Color / Material Ø220.0 x 293.6mm (Ø8.66" x 11.56")
when a memory card reaches end of life, which varies according to operational conditions. Dimensions (WxH)
No guarantee is given against damage (including passive damage). Weight 3.3Kg (7.28 lb) 2.2Kg (4.85 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 57
