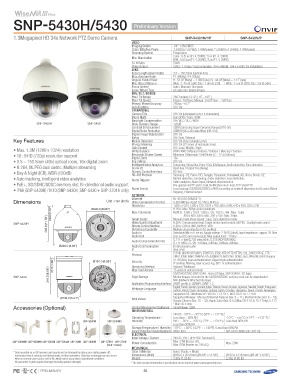

1.3Megapixel HD 34x Network PTZ Dome Camera SNP-5430HN/HP SNP-5430N/P
Video
Imaging Device 1/4" 1.3M CMOS
Total / Effective Pixels 1,392(H) x 1,076(V), 1.49M pixels / 1,368(H) x 1,049(V), 1.43M pixels
Scanning System Progressive
Color : 0.5Lux (F1.4, 50IRE), ?Lux (F1.4, 30IRE)
Min. Illumination B/W : 0.05Lux (F1.4, 50IRE), ?Lux (F1.4, 30IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Lens
Focal Length (Zoom Ratio) 3.5 ~ 150.5mm (Optical 43x)
Max. Aperture Ratio F1.4(Wide) / F4.9(Tele)
Angular Field of View H : 53.92˚(Wide) ~ 1.396˚(Tele) / V : 44.08˚(Wide) ~ 1.12˚(Tele)
Min. Object Distance Wide : 1.4m (4.59ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One push
Lens / Mount Type DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt Range 360˚ Endless / 210˚ (-15˚ ~195˚ )
Pan / Tilt Speed Preset : 700˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
Preset / Preset Accuracy 255ea / ±0.2˚
Auto Tracking Off / On
Operational
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC / WDR
SNP-5430H SNP-5430 Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Key Features Motion Detection Off / On (4ea rectangle zone)
Privacy Masking Off / On (32 zones of rectangle zone)
Gain Control Off / Low / Middle / High
• Max. 1.3M (1280 x 1024) resolution White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• 16 : 9 HD (720p) resolution support Digital Zoom 16x
• 3.5 ~ 150.5mm (43x) optical zoom, 16x digital zoom Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
• H.264, MJPEG dual codec, Multiple streaming Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485
• Day & Night (ICR), WDR (120dB) RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE
• Auto tracking, Intelligent video analytics Alarm Triggers Motion detection, Tampering, Audio detection, Face detection,
Video analytics, Alarm input, Network disconnection
• PoE+, SD/SDHC/SDXC memory slot, Bi-directional audio support File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
• IP66 (SNP-5430H) / IK10 (SNP-5430H, SNP-5430 + SHP-3701H only) Alarm Events Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm
triggers), External output
Network
Ethernet RJ-45 (10/100BASE-T)
Dimensions Unit : mm (inch) Video Compression Format H.264 (MPEG-4 part 10 / AVC), MJPEG
2932.936.6( (111.1.565")6") Resolution 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 320 x 240
20.0 (20.0.0 (70.979"")) Ø2Ø22020.0.0 ((88.6.66")6") H.264 : Max. 60fps at all resolutions
Max. Framerate MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 640 x 480, 320 x 240 : Max. 30fps
Smart Codec Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
SNP-5430H Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
Audio Compression Format G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Ø2Ø22200..00(8(.866."6) 6") Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
218.0 (8.58") Ø15Ø125.20.0 ((55.9.89") 8") Security HTTPS(SSL) login authentication, Digest login authentication
218.0 (8.58") IP address filtering, User access log, 802.1x authentication
27.6 ( 217..60(19.0")9") Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
SD/SDHC/SDXC (SNP-5340 : micro SD type, SNP-5340H : SD type)
SNP-5430 Edge Storage Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
Webpage Language Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 / 10.8
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
Ø13Ø313.32.2 ((55.2.42")4") Web Viewer Google Chrome (Ver. 15 ~ 32), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 Only), 5.1.7)
Accessories (Optional) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
24V AC : -50°C ~ +55°C (-58°F ~ +131°F) /
Operating Temperature / Less than ~ 90% RH -10°C ~ +55°C (+14°F ~ +131°F) /
Humidity PoE+ : -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
SBP-300PM SBP-301HM3 Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10 N/A / IK10 (With SHP-3701H)
Electrical
Input Voltage / Current 24V AC, PoE+ (IEEE802.3at class3)
Max. 24W (Heater off),
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300KM SHP-3701H SHP-3701F Power Consumption Max. 65W (Heater on, 24V AC) Max. 20W
(SNP-5430)
Mechanical
Color / Material Ivory / Plastic + Metal
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Dimensions (WxH) Ø220.0 x 293.6mm (Ø8.66" x 11.56") Ø152.0 x 218.0mm (Ø5.98" x 8.58")
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Weight 3.3Kg (7.28 lb) 2.2Kg (4.85 lb)
when a memory card reaches end of life, which varies according to operational conditions.
No guarantee is given against damage (including passive damage).
* The latest product information / specification can be found at www.samsungsecurity.com
