Page 63 - Catalog Samsung 2014
P. 63
-4000

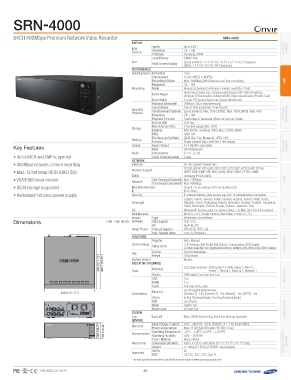

64CH 400Mbps Premium Network Video Recorder SRN-4000
Display Inputs Up to 64CH NETWORK
Resolution CIF ~ 5M Camera
N/W Protocols Samsung, ONVIF
Camera
Live Local Display HDMI / VGA
Multi Screen Display [Local monitor] : 1 / 4 / 9 / 16 / 1+5 / 1+7 / 1+12 / Sequence
[Web] : 1 / 4 / 9 / 16 / 32 / 64 / Sequence
Performance Linux
Operating System Embedded
Compression H.264, MPEG-4, MJPEG
Recording Bit Rate NVR
Resolution Max. 400Mbps (2M 64camera real-time recording)
Recording Mode CIF ~ 5M
Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger Alarm input, Video loss, Camera event (Sensor, MD, Video Analytics),
VA (Upto 4CH selectable, Advanced MD, Object classfication (People, Car))
Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Playback Bandwidth 25Mbps (16CH simultaneously)
Search Mode Date & Time (Calendar) / Event log list NETWORK
Search & Simultaneous Playback [Local monitor] : Max. 16CH, [CMS] : Max. 16CH, [Web] : Max. 4CH PERIPHERAL
Playback Resolution CIF ~ 5M
Playback Function Fast forward / backward, Move one step up / down
Built-In HDD
Max. Internal HDDs 2TB 1ea
External
Storage RAID 12ea (Hot swap), Max. 36TB
NAS (iSCSI) : vessRaid 1840i, Max. 192TB (JBOD)
File Back up (Via Web) RAID-5/6
Function
Key Features Back up Input / Output [GUI] : BU / Exe, [Network] : JPEG / AVI Analogue
• Up to 64CH and 5MP supported Sensor Single channel play, Date-time / Title display Camera
• 400Mbps network camera recording 8 / 4 (NO/NC selectable)
• Max. 12 hot swap HDDs (RAID 5/6) Input 64CH (Network)
• VGA/HDMI local monitor Audio Compression G.711, G.726
• iSCSI storage supported Audio Communication 2-way
• Redundant hot swap power supply Network
Interface RJ-45, Gigabit Ethernet 4ea
Dimensions
Protocol Support TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP, PPPoE,
434366..00 ((1177..1177")") SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF, HTTPS, SNMP
436.0 (17.17") DDNS Samsung iPOLiS DDNS DVR
Network Total Throughput Bandwidth Max. 700Mbps
Transmission Bandwidth Max. 400Mbps
Max. Remote Users Search 1 / Live unicast 10 / Live multicast 20
IP IPv4 / IPv6
Security
IP address filtering, User access log, 802.1x authentication, Encryption
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian,
Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS Window XP (service pack 2 or above), Vista, 7, 8, Mac OS X (10.4.8 or above) LENS
Web Browser MS IE 8.x, 9.x, Google Chrome, Mac Safari, Firefox 2.x, 3.x
Type
Unit : mm (inch) Viewer CMS Support Webviewer, SmartViewer
Software SDK / CGI
OS Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 10, Playback 1
Functions
Register Auto, Manual PERIPHERAL
Camera Setup Setup Items
1) IP Address, Add Profile Edit, Bitrate, Compression, GOP, Quality
2) Video setup (MD, ABF, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter)
445540.50.00.(001((7.11777.2"77)22")") PTZ Control Via GUI, Webviewer
446488.6.787.(7(1 (81.1848..5"44)5"")) Preset 256 presets
System Control
Indicator / Interface Mouse
Front Indicator LED status indicator : HDD action 12, RAID status 1, Alarm 1, MONITOR
Switch Power 1, Record 1, Back up 1, Network 1
PWR switch 1ea, Key-lock 1ea
VGA 1ea
HDMI 1ea
Audio Out (1ea, RCA, Line)
Connections Ethernet RJ-45 Gigabit Ethernet 4ea
Alarm [Camera 1] : 1ea, [Camera 2] : 1ea, [Viewer] : 1ea, [iSCSI] : 1ea
In 8ea (Terminal block) / Out 4ea (Terminal block)
USB 2ea (Front)
Reset Switch 1ea CONTROLLER
System Power Cord AC Inlet 2ea
Log Log List Max. 20000 (System log, Event log, Back up log each)
General
131321.2.3002(.(055..(225".)"2)") Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A (Dual SMPS)
1133818..3338.((355..(454.4"44)"4)") Electrical Power Consumption Max. 217W (546 BTU with 2TB HDD 12ea)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F) Access Control
Operating Humidity 20% ~ 85% RH System
Color / Material
Black / Metal
Mechanical Dimensions (WxHxD) 436.0 x 132.0 x 450.0mm (17.17" x 5.2" x 17.72") (3U)
Weight 12.44Kg (27.43 lb) (2TB HDD 1ea included)
Safety
Approvals EMC UL
CE, FCC, KCC, CCC, Gost-R
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 03-2014 63
