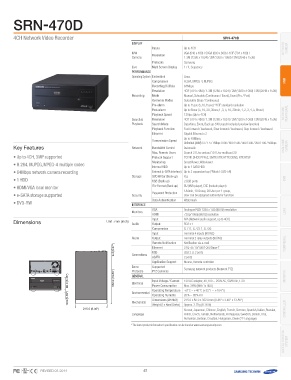

P. 67
-470D SRN-470D
4CH Network Video Recorder Display NETWORK
Camera
Key Features Inputs Up to 4CH
• Up to 4CH, 3MP supported
• H.264, MJPEG, MPEG-4 multiple codec N/W Resolution VGA (640 x 480) / SVGA (800 x 600) / 4CIF (704 x 480) /
• 64Mbps network camera recording Camera 1.3M (1280 x 1024) / 2M (1920 x 1080) / 3M (2048 x 1536)
• 1 HDD
• HDMI/VGA local monitor Protocols Samsung
• e-SATA storage supported
• DVD-RW Live Multi Screen Display 1 / 4, Sequence
Dimensions
Performance
215.0 (8.46")
Operating System Embedded Linux NVR
eSATA2
eSATA1 Compression H.264, MPEG-4, MJPEG
212515..00 ((88.4.64")6") Recording Bit Rate 64Mbps
eSATA2 Resolution 4CIF (704 x 480) / 1.3M (1280 x 1024) / 2M (1920 x 1080) / 3M (2048 x 1536)
eSATA1
Recording Mode Manual, Schedule (Continuous / Event), Event (Pre / Post)
Overwrite Modes Selectable (Stop / Continuous)
Pre-alarm Up to 15sec (5,10,15sec) *4CIF standard resolution NETWORK
PERIPHERAL
Post-alarm Up to 6hour (5, 10, 20, 30sec,1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Playback Speed 120fps (Up to 4CH)
Search & Resolution 4CIF (704 x 480) / 1.3M (1280 x 1024) / 2M (1920 x 1080) / 3M (2048 x 1536)
Playback Search Mode Date/time, Event, Back up (*All search included preview function)
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Ethernet Gigabit Ethernet x 2
Transmission Speed Up to 48Mbps, Analogue
Unlimited (48M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps Camera
Network Bandwidth Control Automatic
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer
Internal HDD Up to 1 SATA HDD
External (e-SATA Interface) Up to 2 expansion bay (*Model : SVS-5R)
Storage DVD Writer (Back up) Yes DVR
USB (Back up) 2 USB ports
File Format (Back up) BU (NVR player), EXE (Include player)
9.4 (0.37") Security Password Protection 1Admin, 10 Group, 20 User per 1 group,
User can be assigned authority for function
Data Authentication Watermark
Interface
Monitors VGA Analogue RGB 1280 x 1024(60Hz) resolution LENS
HDMI 720p/1080p(60Hz) resolution
352.0 (13.86") Unit : mm (inch) Input N/A (Network audio support, up to 4CH)
Audio Output RCA x 1
Compression G.711, G.723.1, G.726
Input Terminal 4 inputs (NO/NC)
Alarm Output Terminal 2 relay outputs (NO/NC) PERIPHERAL
99..44 ((0.03.7"3)7") Remote Notification Notification via e-mail
Ethernet 2 RJ-45 10/100/1000 Base-T
Connections USB USB 2.0, 2 ports
eSATA 2 ports
Application Support Mouse, Remote controller
35 325.2.00((113.3.868")6") Dome Supported Samsung network products (Network PTZ) MONITOR
Protocols PTZ Cameras
10.01(0.00.(30.939"")) 888.80. (03.(463".)46") General
Electrical Input Voltage / Current 12V DC adaptor, 4A,100 ~ 250V AC, 50/60Hz, 1.2A
Power Consumption Max. 36W (With 1x HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
Mechanical Dimensions (WxHxD) 215.0 x 88.0 x 352.0mm (8.46" x 3.46" x 13.86") CONTROLLER
Weight (1x Hard Disks) Approx. 3.7Kg (8.16 lb)
Language Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian,
Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai,
Romanian, Serbian, Croatian, Hungarian, Greek (22 Language)
* The latest product information / specification can be found at www.samsungsecurity.com
10.0 (0.39") 88.0 (3.46") Access Control
System
REVISED 03-2014 67
