Page 72 - Catalog Samsung 2014
P. 72

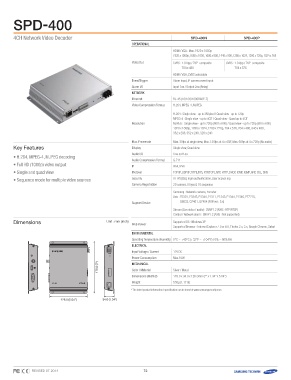

-400 SPD-400N SPD-400P
4CH Network Video Decoder Operational HDMI / VGA : Max. 1920 x 1080p
1920 x 1080p, 1680 x 1050, 1600 x 900, 1440 x 900, 1280 x 1024, 1280 x 720p, 1024 x 768
Key Features Video Out
• H.264, MPEG-4, MJPEG decoding CVBS : 1.0 Vpp / 75Ω composite CVBS : 1 .0 Vpp / 75Ω composite
• Full HD (1080p) video output Event Trigger 704 x 480 704 x 576
• Single and quad view Alarm I/O
• Sequence mode for multiple video sources Network HDMI / VGA, CVBS selectable
Ethernet Alarm Input, IP camera event input
Dimensions Video Compression Format Input 1ea / Output 2ea (Relay)
112288..00((55..0044"")) RJ-45 (10/100/1000BASE-T)
H.264, MPEG-4, MJPEG
Resolution H.264 : Single view - up to 2M pixel / Quad view - up to 720p
MPEG-4 : Single view - up to 4CIF / Quad view - Quad up to 4CIF
MJPEG : Single vIew - up to 720p (800 x 600) / Quad vIew - up to 720p (800 x 600)
1920 x 1080p, 1280 x 1024, 1280 x 720p, 704 x 576, 704 x 480, 640 x 480,
352 x 288, 352 x 240, 320 x 240
Max. Framerate Max. 30fps at single view, Max. 120fps at 4 x 4CIF, Max. 60fps at 4 x 720p (No audio)
Display Single view, Quad view
Audio I/O Line out 1ea
Audio Compression Format G.711
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), NTP, HTTP, DHCP, ICMP, IGMP, ARP, SSL, DNS
Security HTTPS(SSL) login authentication, User access log
Camera Registration 20 camera, 8 layout, 10 sequence
Support Device Samsung : Network camera, Encoder
Axis : P 3301, P3343, P3344, P1311, P1343, P1344, P1346, PTZ215,
Q6032, Q7401, Q7404 (F/W ver : 5.x)
Stream (Live video / audio) : SVNP1.2 (AXIS : RTP/RTSP)
Control / Network alarm : SNVP1.2 (AXIS : Not supported)
Unit : mm (inch) Supported OS : Windows XP
Web Viewer Supported Browser : Internet Explorer 7.0 or 8.0, Firefox 2.x, 3.x, Google Chrome, Safari
Environmental
Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 0% ~ 90% RH
Electrical
Input Voltage / Current 12V DC
Power Consumption Max.10W
117788..00 ((77"")) Mechanical
Color / Material Silver / Metal
Dimensions (WxHxD) 178.0 x 34.0 x 128.0mm (7" x 1.34" x 5.04")
Weight 530g (1.17 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
3344..00 ((11..3344""))
REVISED 07-2014 72
