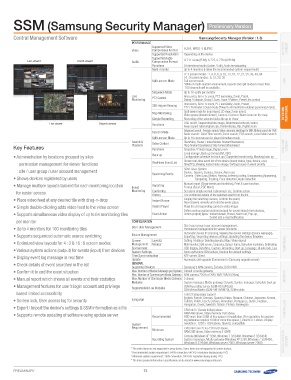

(Samsung Security Manager) Preliminary Version
Central Management Software Samsung Security Manager (Version : 1.3)
Performance NETWORK
Camera
Video Supported Video H.264, MPEG-4, MJPEG
Compression Format
Depending on the device
Supported Resolution
G.711 u-law (PCM), G.723, G.726 (ADPCM)
Live viewer Event viewer Audio Supported Audio
Compression Format Bi-directional audio (Listen / Talk), Audio broadcasting
Up to 4 monitors (Follow the recommended system requirement)
Functions
Multi-monitor 4 : 3 screen modes : 1, 4, 6, 8, 9, 10, 13, 16, 17, 21, 25, 36, 49, 64
16 : 9 screen modes : 6, 12, 20, 30
Split-screen Mode Full screen mode NVR
*While in multi-monitor environment, layouts and split modes for less than
Live Sequence Mode 100 channels will be available. NETWORK
Monitoring PTZ Control PERIPHERAL
Search & Up to 16-splits per monitor
Live viewer Search viewer Playback 360-degree Viewing Area zoom, Go to 1x zoom, PTZ sensitivity, Zoom, Patrol,
Swing / Autopan, Group / Scan, Trace / Pattern, Preset, Iris control
Key Features Map Monitoring Area zoom, Go to 1x zoom, PTZ sensitivity, Zoom, Preset, Analogue
Simple Recording PTZ / Perimeter / Quad mode (*Need to ImmerVision enables panomorph lens) Camera
• Administration by locations grouped by sites Functions Split view mode for map layout, 2D view, Zoom in/out,
: permission management for viewer functions Video popup (Instant viewer), Camera / Sensor / Alarm icons on the map
: site / user group / user account management Search Mode Recording of the selected video tile up to 1hour
Split-screen Mode OSD on/off, Snapshot/prints image, Brightness/contrast control,
• Shows devices registered by users Video Control Keep aspect ratio/original size, Deinterlacing, Flip, Digital zoom
• Manage multiple layouts tailored for each monitoring location Functions Advanced search : Forensic search, Video summary, Heatmap for NVR, Motion search for DVR
Back up Basic search : Date/Time search, Event search, POS search, Local folder search
for easier access Up to 16 cameras can be played simultaneously
• Place video feed at any desired tile with drag-n-drop Real-time Event List Start/stop, Pause, Faster/slower forward/backward,
• Simple double-clicking adds video feed to the video screen Step forward/backward, Skip forward/backward
• Supports simultaneous video display of up to 64 monitoring tiles Snapshot / Prints image, Digital zoom
Local storage, Back up format (AVI, SEC)
per monitor Configurable schedule for back up (*Supported model only), Masking back up
• Up to 4 monitors for 100 monitoring tiles Shows real-time event list of the device (Event status, type, device, user,
• Supports sequenced automatic source switching time(PC)), Viewing instant video image, Sorting based on event priority
• Optimized view layouts for 4 : 3 & 16 : 9 screen modes
• Various system actions (output) for events (input) from devices Searching Events SSM : User, System
• Display event log message in real time Device : System, Camera, Sensor, Alarm out
• Check details of event searched in the list Camera : Video Loss, Motion, Passing, Entering, Exiting, Disappearing (Appearing), DVR
• Confirm it to end the event situation
• Manual report which shows all events and their statistics Tampering, Tracking, Face detection, Audio detection
• Management features for user’s login account and privilege
Event Reporting Manual report (Show events and statistics), Print & save function,
based limited accessibility Monitoring Confirming Format (Excel, PDF, Word)
• Screen lock, User access log for security History
• Export / Import the device’s settings & SSM information as a file Instant Viewer Set alarm details normal / abnormal / etc, Confirm action LENS
• Supports remote updating of software using update server Instant Player The confirmed details of the selected event from the list
Display the selecting camera, Confirm the event,
Record event remarks and end the event status
Plays the corresponding camera’s video image
Event Action Define various system actions (output) for events (input) from devices,
Action (output) types : Instant viewer, Preset, Alarm out, Pop-up,
Sound and e-mail notification
Configuration Site / user group / user account management,
Site / User Management Permission management for viewer functions
Device Management Automatic device IP scanning, Viewing the device settings (Device webpage), PERIPHERAL
Exporting / Importing devices settings, Updating the device firmware
Screen Layouts Setting / Adding / Deleting layouts, Map / Video layout
Management Monitor Multi monitor, Split screen, Sequence, Using i-frame, Using low-resolution, Deblocking
Environment
System Settings OSD display, Date/time, Capture, Recording, Start up, Language, UI auto lock, Log
Time Synchronization Back up/Restore SSM setups, Restore the default settings
Update NTP server, Client
General Automatic self upgrade (Connection to Samsung upgrade server)
Supported Devices Samsung's N/W camera, Encoder, DVR / NVR
Max. Number of Media Gateways per System Default 4 media gateway
Max. Number of Cameras per Media Gateway N/W camera 72CH or DVR / NVR 288CH (36ea) MONITOR
Max. Number of Clients per Media Gateway 5 clients
Modules System manager, Media gateway, Console, Service manager, Schedule back up
Supported Add-on Modules SSM Recording Server (SSM-RS10/RS20)
SSM Virtual Matrix (SSM-VM10/VM20), SSM mobile
Language Total 23 languages support CONTROLLER
English, French, German, Spanish, Italian, Russian, Chinese, Japanese, Korean,
Turkish, Polish, Czech, Serbian, Romanian, Portuguese, Dutch, Croatian,
Hungarian, Greek, Swedish, Danish, Finnish, Norwegian
Recommended CPU Intel i7 (Sandy bridge) above Access Control
System RAM 4GB above, Video memory 1GB above, System
Requirement Minimum HDD more than 20GB of free space for installation. (For operation, the system
log database requires 10GB or more free space.), DirectX 8.1 above. Display
Operating System resolution : 1280 x 1024 above, OpenGL compatible
CPU Intel Core 2 Duo 2.83 GHz above,
RAM 2GB above, Video memory 512MB
Console (Windows XP 32bit, Windows 7 32/64bit, Windows 8 32/64bit)
System mananger, Media gateway (Windows XP 32bit, Windows 7 32/64bit,
Windows 8 32/64bit, Windows server 2003, Windows server 2008)
* The entire items are not supported in every device. Some items are not supported in certain devices.
* Recommended system requirement : 64CH connection, 64CH D1 resolution display (using 1PC)
* Minimum system requirement : 16CH connection, 16CH CIF resolution display (using 1PC)
* The latest product information / specification can be found at www.samsungsecurity.com
Preliminary 73
