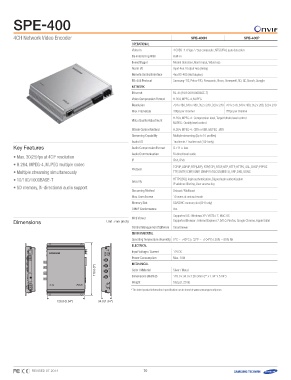

P. 70
-400 SPE-400N SPE-400P
4CH Network Video Encoder Operational 4 CVBS : 1.0 Vpp / 75Ω composite, NTSC/PAL auto detection
Video In Built-in
Key Features De-interlacing Filter Motion detection, Alarm input, Video loss
• Max. 30(25)fps at 4CIF resolution Event Trigger Input 4ea / Output 4ea (Relay)
• H.264, MPEG-4, MJPEG multiple codec Alarm I/O 4ea RS-485 (Half duplex)
• Multiple streaming simultaneously Remote Control Interface Samsung-T/E, Pelco-P/D, Panasonic, Vicon, Honeywell, AD, GE, Bosch, Sungjin
• 10/100/1000BASE-T RS-485 Protocol
• SD memory, Bi-directional audio support Network RJ-45 (10/100/1000BASE-T)
Dimensions Ethernet
Video Compression Format H.264, MPEG-4, MJPEG
112288..00 ((55..0044"")) Resolution
Max. Framerate 704 x 480, 640 x 480, 352 x 240, 320 x 240 704 x 576, 640 x 480, 352 x 288, 320 x 240
Video Quality Adjustment 30fps per channel 25fps per channel
Bitrate Control Method H.264, MPEG-4 : Compression level, Target bitrate level control
Streaming Capability MJPEG : Quality level control
Audio I/O
Audio Compression Format H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Audio Communication Multiple streaming (Up to 10 profiles)
IP 1ea line in / 1ea line out (1CH only)
G.711 u-law
Protocol Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Memory Slot SD/SDHC memory slot (CH1 only)
ONVIF Conformance Yes
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Unit : mm (inch) Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 80% RH
Electrical
Input Voltage / Current 12V DC
Power Consumption Max. 15W
11778.8.00( (77")") Mechanical
Color / Material Silver / Metal
Dimensions (WxHxD) 178.0 x 34.0 x 128.0mm (7" x 1.34" x 5.04")
Weight 562g (1.29 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
343.40.0(1(.13.43"4)")
REVISED 07-2014 70
