P. 68
-872

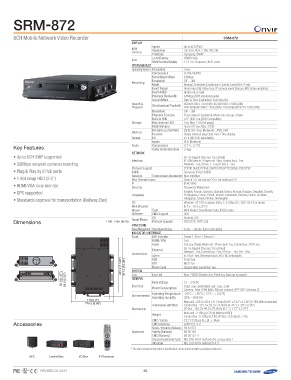

8CH Mobile Network Video Recorder SRM-872
Display Inputs Up to 8CH (PoE)
Resolution CIF, VGA, 4CIF, 1.3M, 2M, 3M
N/W Protocols Samsung, ONVIF
Camera
Live Local Display HDMI / VGA
Multi Screen Display 1 / 4 / 9 / Sequence, 8x D-zoom
Performance
Operating System Embedded Linux
Compression
Recording Bit Rate H.264, MJPEG
Resolution 64Mbps
Mode
Recording CIF ~ 3M
Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger
Event Action Alarm input (8), Video loss, IP camera event (Sensor, MD, Video analytics)
Alarm out, e-mail
Playback Bandwidth 64Mbps (8CH simultaneously)
Search Mode Date & Time (Calendar) / Event log list
Search & Simultaneous Playback 8CH@1280 x 720 (1M) / 4CH@1920 x 1080 (2M)
Playback 4CH 80fps@2048 x 1536 (3M) / 1CH 60fps@1920 x 1080 (2M)
Resolution CIF ~ 3M
Playback Function
Built-in HDD Fast forward / backward, Move one step up / down
Storage Max. Internal HDD 2.5" HDD 1ea (SSD Compatible)
Flash Memory 1ea, Max. 1TB (Hot swap)
micro SD 1ea, Max. 32GB
File back up (Via Web) [GUI] : BU / Exe, [Network] : JPEG / AVI
Back up Function Single channel play, Date-time / Title display
Sensor I/O 8 / 4 (NO / NC selectable)
Inputs
Audio Compression 8CH (Network)
Key Features G.711, G.726
Audio Communication 2-way
• Up to 8CH 3MP supported Network
• 32Mbps network camera recording
• Plug & Play by 8 PoE ports Interface RJ-45 Gigabit Ethernet 12ea (Total)
• 1 Hot swap HDD (2.5") IP CAM data in / Power out : 8ea, Control boc] : 1ea
• HDMI/VGA local monitor Network : 1ea, IO box 1 : 1ea, IO box 2 : 1ea
• GPS supported
• Standards approval for transportation (Railway, Bus) Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
DDNS
Samsung iPOLiS DDNS
Network Transmission Bandwidth Max. 64Mbps
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
IP IPv4 / IPv6
Security Password, Watermark
Language English, French, German, Spanish, Italian, Korean, Russian, Swedish, Denish,
Portuguese, Czech, Polish, Turkish, Rumanian, Serbian, Dutch, Croatian,
Hungarian, Greek, Finnish, Norwegian
OS Window : XP SP2 or above, Vista, 7, 8 / Mac OS : OSX 10.4.8 or above
Web Browser IE 7.x ~ IE 9.x, IE 10
Type Web Viewer, SmarViewer auto, iPOLiS auto
291.2 (11.46") Viewer SDK
311.4 (12.26") Software CMS Support Android, iOS
RTP, RTSP, HTTP, CGI
Dimensions Unit : mm (inch) Smart Phone OS
Protocol Support 1min. ~ 30min. (User selectable)
Functions
Power Management Shutdown Delay Power 1, Error 1, Record 1
Indicator / Interface 1ea
Front LED Indicator Out 2ea (Total), Main unit : Phone jack 1ea, Control box : RCA 1ea
HDMI / VGA RJ-45 Gigabit Ethernet 12ea (Total)
Audio Network : 1ea, Control box : 2ea, I/O box : 1ea, PoE : 8ea
In / Out - 8ea (Terminal block, NO / NC selectable)
178.0 (7") Connections Ethernet Front 3ea
225.5 (8.88") Alarm MCX 1ea
System USB Square 4pin connector 1ea
50.050(.01.(19.977"")) 2 29911..22((111.416.")46") Log GPS
59.0 5(9.2.0 (32.23"2)") 31311.1.44 ((112.22.6"2)6") General Power Cord Max. 20000 (System log, Event log, Back up log each)
Electrical
Log List 12 ~ 24V AC
Total : max. 89W, Main unit : max. 25W
Input Voltage Camera : Max. 64W (Max. 8W per channel, IEEE 802.3af class 2)
Power Consumption -25°C ~ +50°C (-13°F ~ +122°F)
20% ~ 85% RH
Environmental Operating Temperature
Operating Humidity
171878.0.0 ((77")")
22522.55.5(8(8..8888")") Dimensions (WxHxD) Main unit : 225.5 x 59.0 x 311.4mm (8.88" x 2.32" x 12.26") (1 DIN, Without bracket)
Control box : 121.0 x 32.0 x 75.0mm (4.76" x 1.26" x 2.95")
Mechanical I/O box : 155.0 x 44.0 x 70.0mm (6.1" x 1.73" x 2.76")
Approvals
Weight Main unit : 2.16Kg (4.76 lb) (Without HDD)
Control box : 0.18Kg (0.4 lb), I/O box : 0.35Kg (0.77 lb)
Accessories EMC / Safety CE, FCC (Class A), cUL, e-Mark
EMC (Railway)
50.0 (1.97") EN50121-3-2
59.0 (2.32") Shock / Vibration (Railway) EN 61373
Safety (Railway) EN 50155
EMC (Railway)
EN 50121-4
Shock (Functional Test) MIL STD-810F method 516.5 procedure I
Vibration MIL STD-810F method 514.5
* The latest product information / specification can be found at www.samsungsecurity.com
GPS Control Box I/O Box IR Remocon
REVISED 03-2014 68
