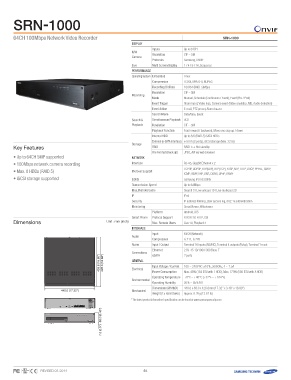

Page 64 - Catalog Samsung 2014
P. 64
-1000 SRN-1000
64CH 100Mbps Network Video Recorder Display
Key Features N/W Inputs Up to 64CH
• Up to 64CH 5MP supported Camera Resolution CIF ~ 5M
• 100Mbps network camera recording Protocols Samsung, ONVIF
• Max. 8 HDDs (RAID 5)
• iSCSI storage supported Live Multi Screen Display 1 / 4 / 9 / 16, Sequence
Dimensions Performance
444040.0.0 ((1177.3.23")2") Operating System Embedded Linux
440.0 (17.32")
Compression H.264, MPEG-4, MJPEG
Recording Bit Rate 100/64 (RAID-5)Mbps
Recording Resolution CIF ~ 5M
Mode Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger Alarm input, Video loss, Camera event (Video analytics, MD, Audio detection)
Event Action E-mail, PTZ preset, Alarm buzzer
Search Mode Date/time, Event
Search & Simultaneous Playback 4CH
Playback
Resolution CIF ~ 5M
Playback Function Fast forward / backward, Move one step up / down
Internal HDD Up to 8/6 (RAID-5) SATA HDDs
Storage External (e-SATA Interface) e-SATA (2 ports), iSCSI storage (Max. 32TB)
RAID RAID-5 + Hot standby
File Format (Back up) JPEG, AVI via web browser
Network
Interface RJ-45, Gigabit Ethernet x 2
Protocol Support TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP,
ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF
DDNS Samsung iPOLiS DDNS
Transmission Speed Up to 64Mbps
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
IP IPv4
Security IP address filtering, User access log, 802.1x authentication
Monitoring SmartViewer, Webviewer
Platform Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI
Live 10, Playback 1
Unit : mm (inch) Max. Remote Users
Interface
Audio Input 64CH (Network)
Compression G.711, G.726
Alarm Input / Output Terminal 16 inputs (NO/NC), Terminal 4 outputs (Relay), Terminal 1 reset
424266.4.2886(.(1861(.186"6.).88")0") Connections Ethernet 2 RJ-45 10/100/1000 Base-T
4422884..2338(.1(36(.11866..")886"6)") eSATA 2 ports
General
Electrical Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A
Power Consumption Max. 45W (154 BTU with 1 HDD), Max. 170W (580 BTU with 8 HDD)
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
Mechanical Dimensions (WxHxD) 440.0 x 88.0 x 426.8mm (17.32" x 3.46" x 16.80")
Weight (1x Hard Disks) Approx. 6.2Kg (13.67 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SRN - 1000 7.57(.507(..05.3(3""0)).3")888.880.8(.300.((436.3".)464")6")
SRN - 1000
REVISED 03-2014 64
