P. 61
-6200RH

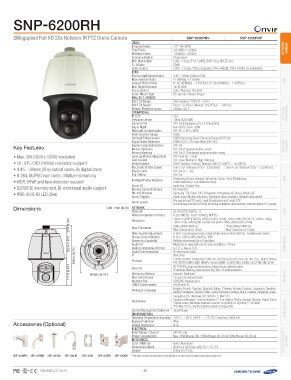

2Megapixel Full HD 20x Network IR PTZ Dome Camera SNP-6200RHN SNP-6200RHP
Video NETWORK
Imaging Device 1/3" 2M CMOS Camera
Total Pixels 2,010(H) x 1,108(V)
Effective Pixels 1,944(H) x 1,092(V)
Scanning System Progressive
Min. Illumination Color : 1.5Lux (F1.6, 50IRE), B/W : 0Lux (IR LED on)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Lens
Focal Length (Zoom Ratio) 4.45 ~ 89mm (Optical 20x)
Max. Aperture Ratio F1.6(Wide) / F2.9(Tele)
Angular Field of View H : 62.98˚(Wide) ~ 3.49˚(Tele) / V : 36.98˚(Wide) ~ 1.99˚(Tele) NVR
Min. Object Distance 1m (3.28ft)
Focus Control Auto / Manual / One shot
Lens / Mount Type DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt Range 360˚ Endless / 190˚(-5˚ ~185˚ )
Pan / Tilt Speed Preset : 250˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
Preset / Preset Accuracy 255ea / ±0.1˚ NETWORK
Operational PERIPHERAL
IR LED 2ea
Viewable Length 100m (328.08ft)
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range 60dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On) Analogue
Key Features Digital Image Stabilization Off / On Camera
Motion Detection Off / On (4 programmable zones)
• Max. 2M (1920 x 1080) resolution Privacy Masking Off / On (12 Rectangle programmable zones)
• 16 : 9 Full HD (1080p) resolution support Sens-up (Frame Integration) Off / Auto (2x ~ 60x)
• 4.45 ~ 89mm (20x) optical zoom, 8x digital zoom Gain Control Off / Low / Medium / High / Manual
• H.264, MJPEG dual codec, Multiple streaming White Balance ATW / Outdoor / Indoor / Manual / AWC (2,400°K ~ 10,500°K)
• WDR, UPnP and face detection support Electronic Shutter Speed Auto / FLK / Manual (1/30 ~ 33,000sec) Auto / FLK / Manual (1/25 ~ 33,000sec)
• SD/SDHC memory slot, Bi-directional audio support Digital Zoom Off / On (1x ~ 8x)
• IP66, IK10, IR LED (2ea) Flip / Mirror Off / On
DVR
Intelligent Video Analytics Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear,
Audio detection, Face detection (5ea)
Alarm I/O
Remote Control Interface Input 4ea / Output 3ea
RS-485/422
RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers Alarm input, Motion detection, Intelligent video analytics, Network disconnect
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP,
Local storage (SD/SDHC/SDXC) recording at Network disconnected, External output, PTZ preset
Dimensions
Unit : mm (inch) Network LENS
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
202.250(27..597") 20.200(0.79") Resolution 1920 x 1080P (Full HD), SXGA (1280 x 1024), 1280 x 960, HD (16 : 9, 1280 x 720p),
1024 x 768, SVGA (800 x 600), VGA (640 x 480), QVGA (320 x 240)
Max. Framerate 30fps (When WDR on, 25fps (When WDR on,
Max. framerate is 15fps) Max. framerate is 15fps)
Video Quality Adjustment
Bitrate Control Method H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 6 profiles) PERIPHERAL
Audio I/O Mic(Line)-in selectable via UI, Line-out (Mono, 1Vrms)
Audio Compression Format G.711 u-law, G.726
399.5 (31995..573") Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE,
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP
177.107(76.97")
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method MONITOR
Ø248Ø.02(498.76") Max. User Access Unicast / Multicast
10 users at unicast mode
Accessories (Optional) Memory Slot SD/SDHC memory slot
ONVIF Conformance Yes (Profile S)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS CONTROLLER
Supported Browser : Internet Explorer 7.0 or Higher, Firefox, Google Chrome, Apple Safari
*Apple Safari, Windows Internet Explorer 9.0(32bit) / 8.0(32bit) / 7.0(32bit)
*For Mac OS X, only the Safari browser is supported.
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 100% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current 24V AC only Access Control
Power Consumption Max. 30W (Heater Off) / 35W (Heater Off, IR on), 90W (Heater On, IR on) System
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø248.0 x 399.5mm (Ø9.76" x 15.73")
Weight 6.9Kg (15.21 lb)
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300PM SBP-300KM * The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 61
